What Is A Pin-type Anchoring Lifting System?
The pin-type anchoring lifting system is a specialized lifting solution used in precast concrete production to safely handle, demold, transport, and install concrete components. Its working principle involves casting high-strength pin anchors directly into the concrete, creating a recessed lifting point that precisely connects with a matching ring connector. Unlike traditional lifting loops or threaded sockets, this system reinforces the concrete from within and provides a fast and secure connection during lifting. Therefore, it speeds up handling, reduces edge damage, and offers more reliable safety control, making the pin-type anchoring lifting system a preferred choice for modern precast factories and infrastructure projects.
-
![Lifting Clutch]()
Lifting ClutchLifting Clutch GME Precast produced CE certificated lifting clutch (ring clutch) with high grade 35CrMoV special casting head clutch and forged bolt. When the head of the lifting clutch is inserted -
![Spherical Head Anchor Lifting Anchor]()
Spherical Head Anchor Lifting AnchorGME Lifting Anchor which is also named as Spherical head anchor/Foot Anchor in different area, consists of a round steel rod with a forged head and foot. -
![Cape Ring Clutch]()
Cape Ring ClutchGME Cape Ring Clutch consists of a clutch body, a curved bolt, and a high-strength bail. the curved bolt is free to move in any direction. The clutch in each load group matches the shape of the -
![Lifting Anchors Lifting Pin Anchor Assembly]()
Lifting Anchors Lifting Pin Anchor AssemblyLift pin anchors are specialized devices designed to safely lift and position heavy objects in a variety of industrial applications. These anchors usually consist of strong pins or bolts that are -
![Utility Anchor Lifting Anchors]()
Utility Anchor Lifting AnchorsUtility anchors are designed for reinforced or unreinforced concrete units, especially for decking, pipes and culverts; or any application where a construction site can benefit from an approved and -
![Lifting Eye Anchors For Precast Concrete]()
Lifting Eye Anchors For Precast ConcreteForged round head hanging nails conform to the hanging nail system for precast concrete components and related lifting safety regulations formulated by various countries, and are an important -
![Recess Former Magnet]()
Recess Former MagnetRecess Former Magnet, Magnetic Recess Former, Construction Lifting & Fixing Systems recess former, Magnetic Steel Recess Former, Capstan Magnetic Recess Former Metal, Swiftlift Foot Anchor -
![Lifting Clutches Type TH For T Anchors]()
Lifting Clutches Type TH For T AnchorsLifting Clutches Type TH for T Anchors Lifting Clutch Type TH - Electro Plated The capacity loads are axial with breakage safety factor equal to 5 for all types of lifting clutches (1,3 ton up to 32 -
![Semi-spherical Steel Magnetic Recess Former]()
Semi-spherical Steel Magnetic Recess FormerThis steel body is turned from solid material and fitted with a high-performance magnetic system, providing a high-powered magnet for locating precast head foot anchors in steel moulds. When casting -
![Precast Concrete Silver Recess Former Magnet]()
Precast Concrete Silver Recess Former MagnetProduct Description Introduction The Precast Concrete Recess Former Magnet 10.0T is used for holding ball-headed anchors. Depending on the size of the ball-headed anchor, we offer the magnets to fit
Key Advantages of Pin Anchor Lifting Systems
Faster Lifting and Handling
Pin anchor lifting systems are engineered for speed and efficiency. Compared with traditional lifting methods such as wire ropes or temporary lifting eyes, pin anchor systems enable quick connection and release, significantly reducing operation time during demoulding, yard handling, and on-site installation.
Higher Safety Level
Safety is one of the major advantages of pin anchor lifting systems. The matched design between the anchor, cast-in insert, and lifting clutch ensures secure engagement and minimizes the risk of accidental release. Operators can easily verify correct positioning before lifting, helping to reduce on-site safety risks.
Lower Labor and Installation Costs
Pin anchors are cast directly into the concrete, eliminating the need for complex on-site installation. This simplifies workflows, reduces manual labor, and improves overall production efficiency.
Stable and Reliable Performance for Repeated Use
Designed for repeated lifting cycles, pin anchor lifting systems deliver consistent and reliable performance, making them an ideal solution for high-volume precast concrete production environments.

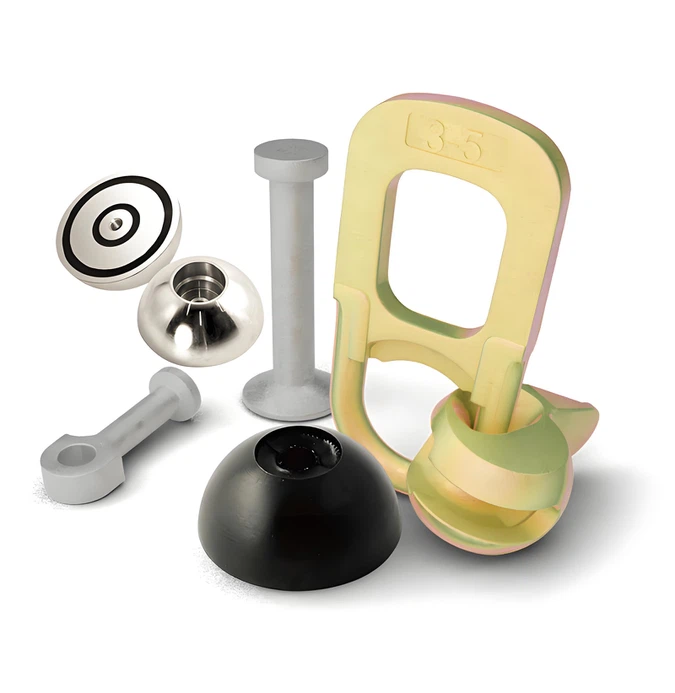

Main Components of the Pin Anchor Lifting System

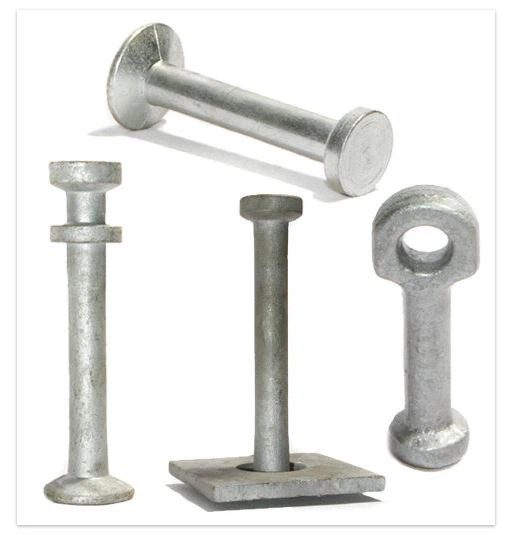

Lifting Anchor
The lifting anchor is manufactured from manganese steel through hot forging. Its head features a spherical shape designed to work together with a lifting ring clutch, while the disc-shaped foot is embedded in the concrete to ensure safe handling and movement of precast concrete elements during demoulding, transportation, and installation.
Cast directly into the concrete, the lifting anchor provides a reliable, load-tested lifting point that efficiently transfers forces into the structure. It helps reduce the risk of edge damage, minimizes on-site labor, and improves overall lifting efficiency.
Lifting anchors are widely used in panels, beams, pipes, and other precast components. We offer lifting anchors with a wide range of Working Load Limits (WLL), all compliant with AS 3850.1:2015. Each lifting anchor has been extensively tested in concrete, with over 500 individual tests conducted, consuming approximately 150 tons of concrete to verify performance and safety.

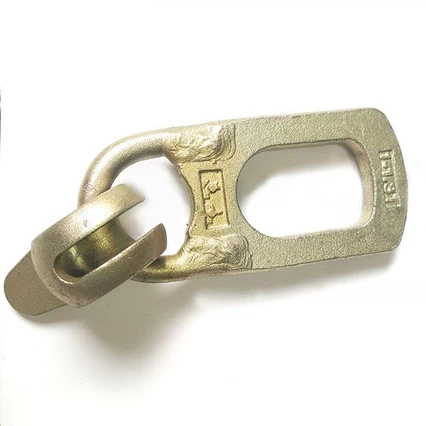

Lifting Clutch
The lifting clutch, also known as a dog bone lifting clutch, consists of a main body with a projecting lever arm and a high-strength lifting ring. The body features a T-shaped slot that engages with the head of a dog bone lifting anchor. The combined rotating function of the body and the lifting ring allows precast panels to be lifted, rotated, tilted, and/or turned over under load.
When the head of the lifting ring is inserted into the recess of the cast-in anchor, the locking bolt secures the ring to the embedded anchor. The cast head of the lifting ring requires special surface treatment to improve mechanical performance, and the forged bolt must be made from the same material as the head to ensure consistent strength and reliability.
Magnetic Recess Former
The magnetic recess former is a practical and efficient accessory used in precast concrete production to create clean and accurate recesses for lifting anchors. It features built-in high-strength magnets that allow it to be firmly fixed to steel formwork without screws or welding, ensuring precise positioning during concrete pouring and vibration. Compared with traditional rubber or screw-fixed formers, magnetic recess formers are quicker to install, easier to remove, and fully reusable, helping to reduce setup time and labor costs.
Anchor Lifting Production Process
Load Capacity and Selection Guidelines
Selecting the appropriate load capacity is crucial for ensuring safe and efficient lifting operations using pin-type anchoring systems. Pin-type anchors offer a wide range of load capacities, suitable for various applications from small precast elements to large, heavy concrete components.
Component weight is the starting point for selecting the load capacity, but this must always be evaluated in conjunction with the number of lifting points, as the load is rarely perfectly evenly distributed during lifting. Sling angles and lifting direction also play a significant role, as angled lifting increases the actual force acting on each anchor compared to vertical lifting.
Equally important is the concrete strength at the time of lifting, especially during early demolding stages when the concrete has not yet reached its design strength. Furthermore, sufficient edge distance and embedment depth are critical to ensure proper load transfer into the concrete and prevent edge spalling.
Send Inquiry Now
Applications of Pin Anchor Lifting Systems
Pin anchor lifting systems are widely used in precast concrete production because they provide a reliable, efficient, and repeatable solution for handling heavy components. In precast wall panels and façade panels, pin anchor systems enable fast demoulding and safe tilting while keeping the lifting points recessed, which helps protect edges and finished surfaces.
For pipes, culverts, and manholes, the system ensures stable load transfer and controlled lifting, making it well-suited for repetitive factory handling and on-site installation. In slabs, beams, and stair elements, pin anchor lifting systems support both vertical and angled lifting, simplifying positioning during erection without the need for complex rigging.
During factory yard handling and on-site installation, pin anchor lifting systems allow operators to work more efficiently, reduce manual adjustments, and maintain a high level of lifting safety throughout the entire handling process.
Send Inquiry Now
Pin Anchor Lifting System vs Other Lifting Systems
| Comparison Item | Pin Anchor Lifting System | Threaded Lifting Socket |
| System Type | Cast-in pin anchor with matching recess former and lifting clutch. | Threaded socket cast into concrete, lifted by threaded lifting eye or bolt. |
| Speed of Operation | Very fast engagement and release, ideal for repetitive factory handling. | Slower operation, requires manual screwing and unscrewing. |
| Safety & Mismatch Prevention | Load-group matching between anchor, recess, and clutch reduces misuse risk. | Risk of incorrect thread size or incomplete tightening if not carefully checked. |
| Surface Finish | Recessed lifting point protects edges and finished surfaces. | A threaded socket may remain visible or require patching after lifting. |
| Typical Use Cases | Precast wall panels, pipes, culverts, slabs, beams, repetitive yard handling. | Architectural panels, thin elements, and projects requiring concealed lifting points. |
Why Choose Us?
|
|
|
| Certificate Number: M.2024.206.C107403 | Certificate Number: M.2024.206.C107402 |
| More Certificates | |
As a factory-direct manufacturer located in China, we eliminate unnecessary intermediaries, providing you with better cost control, stable supply, and consistent product quality. Our pin-type anchoring and lifting systems are manufactured under strict dimensional control, ensuring stable tolerances and reliable load-bearing performance for every batch.
We offer complete system solutions, including pin-type anchors, matching lifting rings, and embedded components, all designed to work seamlessly together. This reduces the risk of incompatibility and simplifies the procurement process for your precast projects.
Beyond our products, our team also provides technical support for system selection, load calculations, and drawings, helping you choose the right configuration for each lifting scenario. With fast response times and global shipping capabilities, we ensure your projects are completed on time without compromising safety or performance.
FAQ
Q: Can pin anchor systems be used for angled lifting?
A: Yes. Pin anchor lifting systems can be used for both vertical lifting and angled lifting. However, during the design and selection stage, it is essential to consider the sling angle, load amplification factors, and safety margins. As the lifting angle increases, the actual force acting on the anchor also increases, so it may be necessary to use additional anchors or select a higher load capacity anchor to ensure safe lifting.
Q: How do I choose the correct anchor length for thin panels?
A: When selecting anchors for thin precast elements, special attention should be given to embedment depth, edge distance, and concrete thickness. In most cases, short-type or narrow pin anchors designed specifically for thin panels should be used, and minimum concrete cover requirements must be met to prevent edge breakout or local cracking.
Q: What concrete strength is required before lifting?
A: Before lifting, the concrete must reach the specified minimum demoulding or lifting strength, typically 50%–75% of the design compressive strength. The exact requirement depends on the unit weight, number of lifting points, and load conditions. Final confirmation should be based on structural calculations or an engineer’s approval.
Q: Can lifting clutches from different load groups be used interchangeably?
A: No. Pin anchor lifting systems are designed with load-group matching, and lifting clutches must correspond to the same load group as the anchor. Clutches from different load groups must not be mixed to avoid incorrect engagement and potential safety risks.
Q: Can pin anchor lifting systems replace other lifting systems?
A: In many precast concrete applications, pin anchor systems can partially or fully replace other lifting systems, especially in high-frequency lifting, factory-based production, and efficiency-driven projects. However, whether replacement is appropriate should always be evaluated based on the specific element type and applicable design standards.
