Great Magtech (Xiamen) Electric Co., Ltd. is one of the leading manufacturers and suppliers of utility anchor lifting anchors in China. Please feel free to wholesale high quality utility anchor lifting anchors from our factory. If you have any enquiry about cooperation, please feel free to email us.

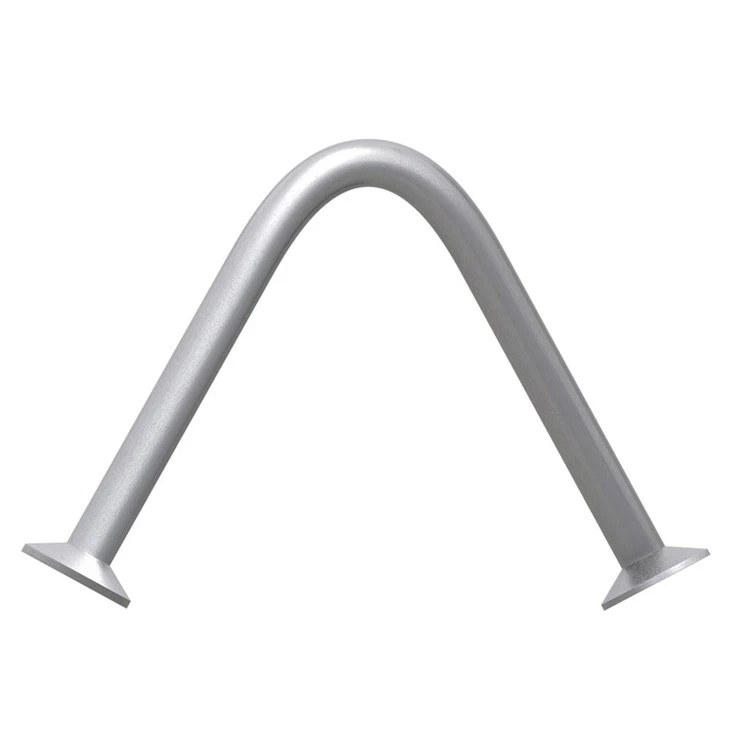

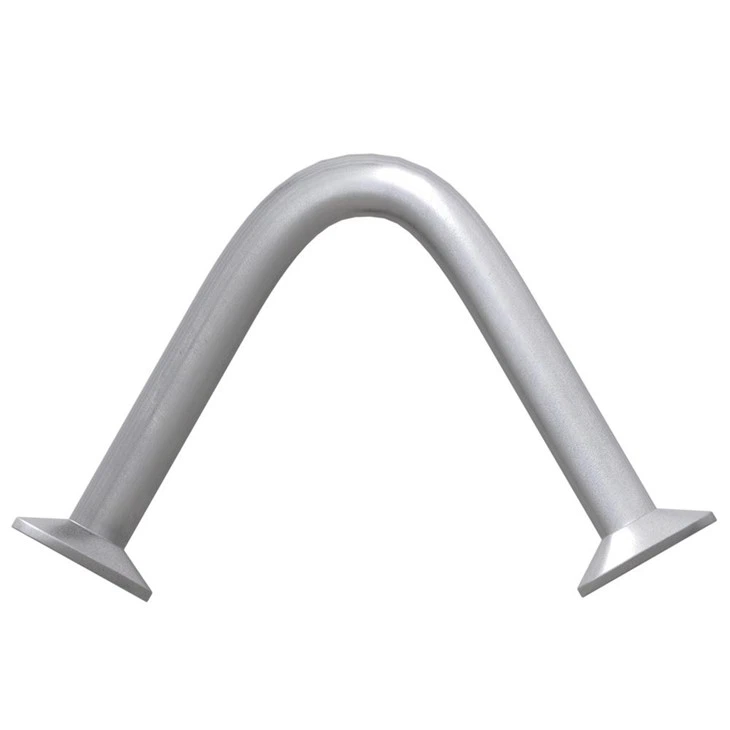

Description of Utility Anchors

Utility anchors are designed for reinforced or unreinforced concrete units, especially for decking, pipes, and culverts; or any application where a construction site can benefit from an approved and tested precast concrete lifting anchor, a multipurpose anchor for lifting and tilting precast concrete. No particular lifting shackles are required as they allow the direct connection of the crane hook to the prefabricated unit. These anchors can be used in axial and shear applications without additional reinforcement.

Material: alloy steel

Surface: hot-dip galvanized, electro-galvanized, natural color

Process: stamping, welding

Packing: carton, then pallet

Unique specifications and marks can be made according to customer requirements

application of utility anchors

Specification of Utility Anchors


Number	WD	Anchor identification	Type slab thickness	W	H	FD	Weight(lbs)
GME44G	.444	4/4	4''	5-1/4''	3-1/8''	15/16''	0.45
GME54G	.444	5/4	5''	6''	3-3/4''	15/16''	0.53
GME64G	.444	6/4	6''	7-1/4''	4-3/4''	15/16''	0.59
GME56G	.671	5/6	5''	6-1/4''	3-3/4''	1-5/8''	1.11
GME66G	.671	6/6	6''	7-1/2''	4-3/4''	1-5/8''	1.34
GME86G	.671	8/6	8''	9-3/4''	6-3/4''	1-5/8''	1.81
