Wholesale Magnetic Formwork Supplier
Be Careful When Choosing a Magnetic Formwork Supplier, The Disappointment of Low Quality Lasts Much Longer Than The Joy of LOW PRICE!
OEM & ODM
We can accept OEM and ODM services, and customize your size, logo, or color.
Quick response
We can quickly provide quotes, data sheets, and drawings for projects, as well as respond quickly to any after-sales service.
Precast concrete one-stop solution
We have more than 15 years of production work experience in the field of precast concrete. Customer-oriented and win-win cooperation concept
-
![Formwork Magnet]()
Formwork MagnetPrecast Concrete Magnetic Formwork side mold Description This formwork-system, consists of a formwork profile (steel) with an integrated magnetic tension mechanism, which can be used in different -
![Precast Concrete Magnetic Side Formwork]()
Precast Concrete Magnetic Side Formworkrecast Concrete Magnetic Side Formwork Keywords: Shuttering Magnet, Concrete Magnet, Magnetic Formwork, Precast Concrete Magnet, Magnetic Box, Shutter Magnet, Magnet Precast Magnet, Concrete Formwork -
![Corner Slip-on U-shuttering Magnet Formwork Magnet]()
Corner Slip-on U-shuttering Magnet Formwork MagnetPrecast concrete bread magnet is a special bread-shaped formwork magnet specially used for steel rail molds or wooden multilayer board formwork. With the help of the additional multifunctional -
![Formwork Magnet Formwork Profiles For Solid Precast Panels]()
Formwork Magnet Formwork Profiles For Solid Precast PanelsFormwork magnet for the manufacture of solid precast panels of standard thickness, sandwich panels, floor slabs and facades. Can be used in robotic arms and equipped with integrated switchable -
![Formwork Magnet System Ratec Formwork Magnetic]()
Formwork Magnet System Ratec Formwork Magneticthe simple operation of the precast concrete formwork magnet provides additional safety and stability for the entire construction process. With the use of a special pry bar, the mold magnet can be -
![Magnet Formwork Magnetic Shuttering System]()
Magnet Formwork Magnetic Shuttering SystemMagnet Formwork Magnetic Shuttering System is a shuttering system for the systematic production of cladding, sandwich walls, solid walls, and slabs. The Magnet Formwork Magnetic Shuttering System is -
![Formwork Magnet System For Precast Concrete Floor Panel]()
Formwork Magnet System For Precast Concrete Floor PanelWith the rapid development of the prefabricated construction industry, magnetic fixed products such as shuttering magnets and ferrule insert magnet magnets have been fully applied in the production -
![Precast Concrete Formwork For Wall Panel]()
Precast Concrete Formwork For Wall PanelGME Magnetshuttering system offers an ideal range of applications perfectly suitable for all kinds of formwork construction, both for wood and steel shuttering. Shuttering magnets are fast and stable -
![Precast Concrete Formwork Magnet Suitable For Wall Panel With Rebar Out Of Mold]()
Precast Concrete Formwork Magnet Suitable For Wall Panel ...◆ Item no: GME-1802 ◆ N.W.: 71kg ◆ Magnet: 1350kg*2 ◆ Material: steel with magnets ◆ Surface treatment: black paintFormwork Magnet Introduction With the rapid development of the prefabricated -
![The Formwork Magnet For Precast Concrete]()
The Formwork Magnet For Precast ConcreteFormwork Magnet Introduction Our shuttering magnet also is known as magnets provides quick operation leading to improved efficiency. By pressing the button on top of the steel casing, this magnetic
What is Magnetic Formwork
Shuttering systems or magnetic formwork are used for the production of precast concrete structures. The adapters with the shuttering magnets are placed on the points of the magnetic formwork fixation. When concrete is set, the formwork is demoulded by removing the equipment. Some shuttering magnet systems are equipped with adaptors for magnetic formwork fixation. A formwork differs by its stiffness – a flexible shuttering board is used for round parts, and a rigid shuttering board is used for standard structures. We can produce formwork magnets (precast concrete Magnetic board) with the same quality as Ratec, Vollert, and Weckenmann. Please contact us to get the latest technical information.
What are the Features of Magnetic Formwork?
Formwork magnet Because the magnet block is directly embedded in the template of the production component, it is more fixed than the current Shuttering Magnet and has the advantages of being more convenient, more efficient, and more stable.
High matching degree
On/Off switchable precast box magnets are a typical formwork magnet type in precast magnetic solutions and are used to position and secure formwork side molds on steel casting beds in the field of precast component production, such as steel molds, aluminum molds, wooden and plywood molds.
High generation efficiency
Compared with traditional bolting or welding on steel worktables, it plays a new key role, especially for tilting worktables, with higher productivity and simpler prefabricated production operation methods.
long-lasting
After the precast parts have been installed and the formwork magnets have been removed, the magnets can be released manually by pulling up a button using a special steel rod. After the magnet work is completed, it should be removed and stored regularly for maintenance.
easy to use
Lightweight yet highly attractive, it can be used on both manual and robotic arm/gantry systems. Reduces forming and reshaping time, facilitates cleaning, and improves the quality of the final precast concrete element.
Types of Magnetic Formwork
Convex Magnetic Formwork System
Formwork Magnet With Rebar Out
Common Formwork Magnet
Formwork Magnet
Formwork Magnet System
Precast Concrete Formwork
Magnetic Formwork Processing
What sets us apart from our competitors is our ideal magnetic solution, excellent quality, and great service. With a testing laboratory equipped with state-of-the-art measuring and testing devices, our QC dept. ensures ongoing development and maintenance of high-quality standards and guarantees full compliance with customer requirements and all applicable regulations. (production equipment and process as below)
From the production of parts to the final product, the side mold requires 6-7 steps. (The specific production process depends on different equipment capabilities. To ensure the quality, we would conduct strict quality checks under the industry standard. A special quality inspector is responsible for inspecting each process.
1. Case Processing
Laser-cutting from Europe, precision-oriented
2. Hydroforming
Hydraulic machine
3. Welding Treatment
European brand &High Accuracy
4. Inside Magnetic Core
High quality, strong pulling force inside the magnetic core
5. CNC Lathe Machine
Head button processing
6. Complete Production
A special quality inspector is responsible for inspecting each process.
Asymmetric Poka-Yoke Design of forwork magnet
In the actual production of the formwork magnet, to prevent the two end steel plates of the formwork magnet housing from being installed in the wrong orientation, we apply an asymmetric mounting-distance design (e.g., 280 mm on the left and 250 mm on the right). In addition, each steel plate is equipped with its own unique set of protrusions and recesses, further eliminating the possibility of incorrect assembly.
This poka-yoke structure ensures that the plates can only be installed in one correct direction, effectively preventing reverse installation and significantly improving production consistency and stability.
Without such a mistake-proof design, many new workers might naturally assume that both steel plates are identical and interchangeable, leading to a high risk of installing them backwards. In our factory, this inherent but incorrect assumption is eliminated by our poka-yoke system.
Formwork Magnet Geometrical Tolerance Inspection:
After welding and shaping, place the edge mold naturally on the inspection platform. Use a dedicated feeler gauge to check the two geometric tolerances AB, use calipers to check the four geometric tolerances CDEF, and use a tape measure to check G. Specific tolerance values are detailed above.
Factory of Formwork Magnet
With the booming development of the precast construction industry, magnetic fixing products such as Shuttering Magnet and Insert Magnet have been fully used in the production process of precast concrete components. The magnetic side formwork is because the magnet blocks are directly embedded in the formwork magnet of the production components. The current Shuttering Magnetic fixation has the advantages of being more convenient, more efficient, and more stable.
Greatmagtech has introduced internationally advanced fiber laser cutting machines, electro-hydraulic servo CNC bending machines, and several CNC lathes. It can independently develop and produce magnetic side molds of various sizes and suction forces. The 4-meter-long Formwork magnet can be bent and formed in one go, with high precision and excellent quality.
Magnetic Formwork Customer Cases
Formwork magnet
（3.2m, 2.83m）
Formwork magnet
（1m, 2m, ）
Formwork magnet
（0.75m, 1m, 1.5m, 1.75m, 3m, 3.98m）

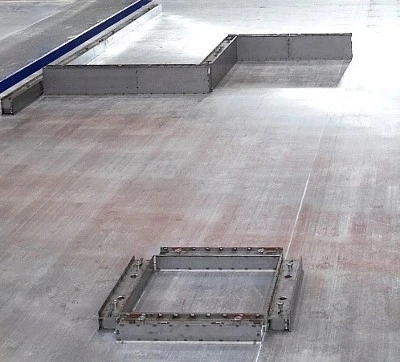

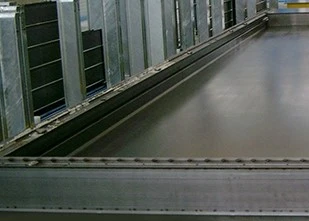

Usage of Formwork Magnet
Formwork magnetic is suitable for positioning and fixing formwork side forms on steel casting beds in the field of precast component production, such as precast concrete interior/exterior wall panels, stairs, and balconies, and is suitable for most molds, such as steel formwork, aluminum formwork, wood formwork, and plywood molds. Compared with traditional bolting or welding on steel workbenches, it plays a new key role, especially for tiltable workbenches, with higher productivity and simpler prefabricated production operation methods.
Package of Magnetic Formwork
Template Magnet Inner Packaging
Each magnetic template unit is individually protected with anti-corrosion treatment and shock-absorbing inner packaging. This prevents surface damage, moisture damage, and magnetic loss during handling and short-distance transportation.
Wooden Crate Packaging
For international and heavy-duty shipments, the magnets are packaged in reinforced wooden crates. The crate structure is robustly designed to withstand stacking, vibration, and prolonged transportation. Wooden crate packaging provides superior cargo protection, ensuring the magnets arrive at their destination undamaged, neatly arranged, and ready for immediate use on-site.
Formwork magnet Inner Package
Wooden Case Package
Why Choose Us
As a reliable supplier from China, we have been serving precast concrete manufacturers in various regions for the past 15 years, establishing long-term partnerships. We understand that in precast concrete production, formwork is not just a tool for "holding concrete"; it also impacts production cycles, labor costs, dimensional accuracy, and surface quality. Therefore, our solutions are always designed around actual factory needs: quick installation, stable clamping force, and repeatable production results between shifts.
The GME formwork system utilizes high-performance integrated magnets and a U-shaped steel profile structure to create a compact and lightweight design that remains stable during vibration and pouring.
Key advantages you can rely on:
Suitable for various precast concrete production: Ideal for wall panels, floor slabs, beams, columns, and custom components, supporting both standard and complex layouts.

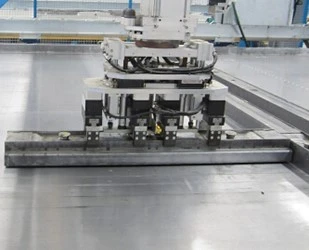

Compatible with automated and manual operation: Designed to work seamlessly with today's formwork robots while maintaining the ease of manual operation, making upgrades easier without disrupting your workflow.
Significant cost savings in the demolding process: Easy demolding and quick dismantling reduce downtime, improve turnaround efficiency, and help lower labor costs—especially in high-volume production.
FAQ
Q: What are formwork magnets used for?
A: Formwork magnets are used in precast concrete production to securely fix steel formwork, side molds, and profiles to steel casting tables. They replace traditional welding or bolting methods, making formwork installation faster, cleaner, and more flexible.
Q: How strong is the magnetic force of formwork magnets?
A: The magnetic force of formwork magnets varies, typically ranging from 450 kg to over 2100 kg. The appropriate magnetic force depends on the panel height, concrete pressure, vibration intensity, and formwork design.
Q: Are formwork magnets reusable?
A: Yes. High-quality formwork magnets are designed for thousands of use cycles. With proper cleaning and maintenance, they provide long-term stable performance and significantly reduce overall formwork costs.
Q: Are formwork magnets compatible with automated production lines?
A: Absolutely. Formwork magnets are widely used in both manual precast setups and automated formwork robot systems, making them suitable for modern precast factories and production upgrades.
Q: Will formwork magnets damage the steel casting table?
A: No. When used correctly, formwork magnets will not damage the steel casting table. They eliminate welding marks and drilling, helping to maintain a flat and clean casting surface in the long term.
Q: How are formwork magnets safely released?
A: Formwork magnets are released using a dedicated release lever or tool. This allows for controlled detachment, avoiding sudden movements and improving operator safety.
Q: What maintenance do formwork magnets require?
A: Basic maintenance includes removing concrete residue, keeping the magnet surface clean, and regularly applying rust-inhibiting oil to moving parts. Regular inspections ensure consistent magnetic force.
Q: Can formwork magnets be customized?
A: Yes. The magnetic force, housing dimensions, profile type, and coating of formwork magnets can be customized to meet specific precast mold or production requirements.
Q: Are formwork magnets suitable for all types of formwork?
A: They are ideal for steel formwork systems. For wooden or aluminum formwork, the magnets usually need to be combined with steel adapters or profiles to ensure secure fixing.
Great Magtech (Xiamen) Electric Co., Ltd. is one of the most professional magnetic formwork manufacturers and suppliers in China, supplying the best wholesale service. Feel free to buy high quality magnetic formwork from our factory.
