Great Magtech (Xiamen) Electric Co., Ltd. is one of the leading manufacturers and suppliers of magnet formwork magnetic shuttering system in China. Please feel free to wholesale high quality magnet formwork magnetic shuttering system from our factory. If you have any enquiry about cooperation, please feel free to email us.

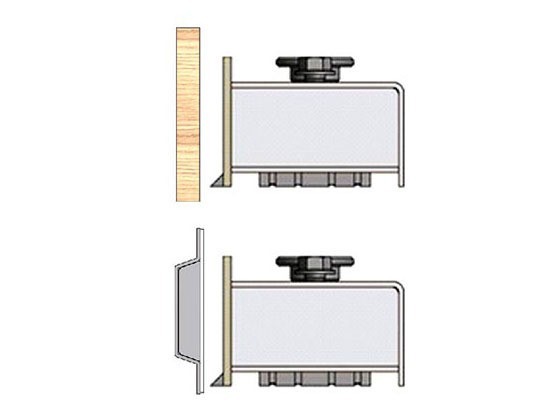

What is Magnet Formwork Magnetic Shuttering System
With the rapid development of the prefabricated construction industry, magnetic fixed products such as shuttering magnets and ferrule insert magnet magnets have been fully applied in the production of precast concrete components. The magnetic block is directly embedded in the formwork, so it is more convenient, more efficient, and more stable than the magnetic box.
Magnet Formwork Magnetic Shuttering System is a shuttering system for the systematic production of cladding, sandwich walls, solid walls, and slabs. The Magnet Formwork Magnetic Shuttering System is available in lengths up to 3980 mm and heights from 60 mm up to 400 mm.
The system can be used for manual and robot handling. This makes it the perfect side rail solution for automated operation, particularly in circulation systems. We cut the system precisely to your requirements.
Material of Magnet Formwork Magnetic Shuttering System

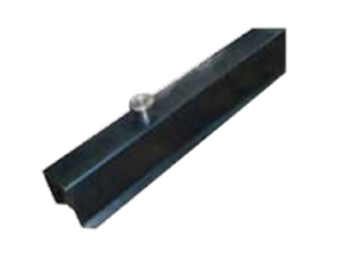

Q235A Carbon Steel, Blackening Treatment
Q235A carbon steel is generally used, which has better magnetic flux than stainless steel and low cost. The anti-rust treatment of the iron shell is usually blackening. It is a common method of chemical surface treatment. The principle is to produce an oxide film on the metal surface to isolate the air and achieve the purpose of anti-rust.
Q235A Carbon Steel, Polished Treatment
Some customers are concerned that the oxide layer on the exterior will affect the cement surface, so a polished treatment is adopted
Aluminum Alloy
The aluminum alloy formwork magnet is composed of an aluminum alloy formwork and embedded magnet blocks. Due to the special processing technology, the aluminum alloy formwork has high strength, and the deformation rate is small compared to the formwork of steel or stainless steel. Product consistency and stability. The weight of the formwork is greatly reduced, which is conducive to production operations.
Stainless Steel
The stainless steel formwork magnet is composed of a stainless steel formwork and an embedded magnet block, which is light in weight and convenient for the operation of the mechanical arm.
Features of Magnet Formwork Magnetic Shuttering System
1. High-performance magnets, powerfully fix the template without sliding.
2. Whether it is manual, crane, or robot handling, the formwork can be easily positioned, fixed, and removed.
3. Provide cost-effective and efficient solutions for the production of high-quality precast concrete elements.
4. Specially customized shape, height, and length according to your requirements.
Specification of Magnet Formwork Magnetic Shuttering System
| Type | Length | Height | Width | Nos. Magnet |
| A |
|
|||
| 2670 | 120 | 130 | 2 | |
| 2700 | 120 | |||
| 2760 | 100, 120, 150, 200 | |||
| 2790 | 200 | |||
| 3000 | 100, 120, 150, 200 | |||
| 3030 | 150, 200 | |||
| 3160 | 100, 120, 150, 200 | |||
| 3190 | 100, 120, 150, 200 | |||
| B |
|
|||
| 3030 | 100, 120, 150, 200 | 130 | 2 | |
| C |
|
|||
| 2670 | 100 | 130 | 3 | |
| 2700 | 100 | 3 | ||
| 2760 | 100, 120 | 3 | ||
| 2790 | 100, 120 | 3 | ||
| 3000 | 100 | 3 | ||
| 3030 | 100, 120, 150 | 3 | ||
| 3160 | 100, 120, 150 | 3 | ||
| 3190 | 100, 120, 150 | 3 | ||
| D | 300 | 400 | 200 | 1 |
| 500 | 1 | |||
| 540 | 1 | |||
| 820 | 2 | |||
| 1000 | 2 | |||
| 1040 | 2 | |||
| 1120 | 2 | |||
| 2000 | 2 | |||
| 3000 | 140 | 60 | 3 | |
| 50 | 70 | 3 | ||
| 100,120,150 | 120 | 3 | ||
Package of Magnet Formwork Magnetic Shuttering System
We have rich export experience, and our product quality and packaging are excellent.
1. Usually multiple templates are placed in a wooden box and can also be customized according to customer needs
2. Each box is fixed with packing tape to ensure that the product is intact
3. Usually use pallets and plastic film wrapping to ensure the safety of the goods.
one-stop solution
professional team
high quality

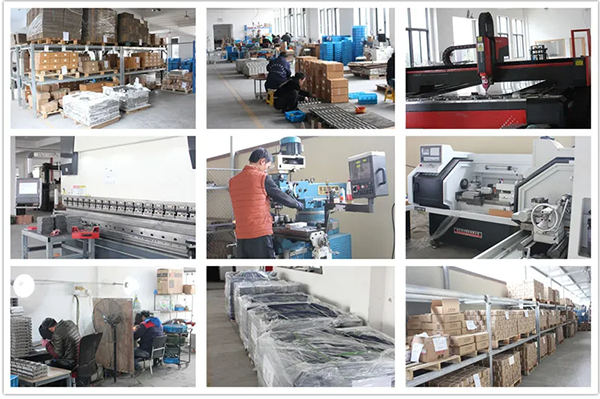

Why Choose Us?
As a reliable supplier from China, we serve numerous customers around the world. We have been working with clients for more than 15 years. We solemnly promise that our products have
Has the following advantages:
The GME formwork system is assembled from inserted powerful magnets and U-shaped steel outer profiles. Design with attention to size. Fast, safe, and efficient. Universal system for precast concrete production;
Applicable to all current formwork robots or manual handling;
Eliminating forms saves costs. Available in various heights and lengths according to your requirements;
Test of Magnet Formwork Magnetic Shuttering System
Maintain of Magnet Formwork Magnetic Shuttering System
(1) Do not collide or hit with hard tools to avoid damaging the magnetic template.
(2) The magnetic system on the contact surface of the template should be kept clean and smooth to avoid iron filings or cement slurry from entering it, otherwise it will affect the flexibility of the button, and the magnetic system will tilt, making the template unable to move. Fastened tightly to the platform, the suction power weakens.
(3) The contact surface of the template should always be kept clean and smooth. After use, clean the stencil. It should be oiled when stored.
The maximum working and storage temperature should be below 80°C, and there should be no corrosive media around. Always check whether the working surface and platform are tightly fixed and the buttons are flexible to ensure normal use.
