Need an efficient and safe solution for handling precast concrete units?
Our Flat Lifting System offers a secure and cost-effective way to lift and handle precast concrete units, from panels to beams. Whether you're managing wall panels or floor slabs, this system optimizes lifting efficiency and ensures maximum safety for your crew and the concrete.
-
![Ring Clutch For Flat Lifting System]()

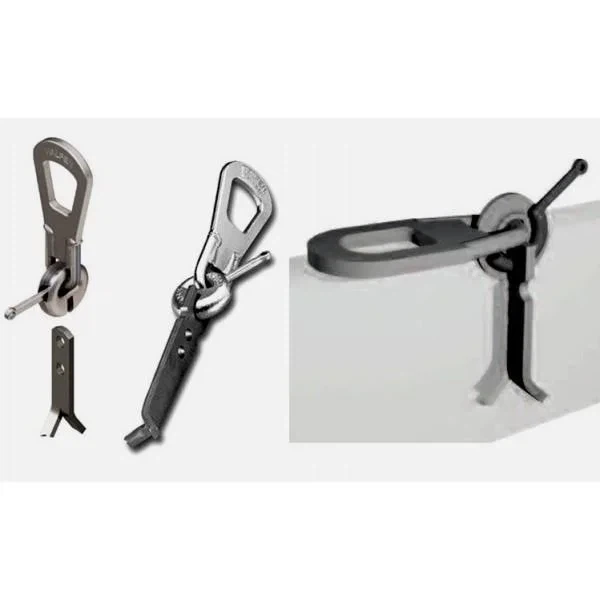

Ring Clutch For Flat Lifting SystemGME Ring Clutch consists of a shackle and a clutch head, the shackle is free to move in any direction. The clutch in each load group matches the shapeof the recess former and incorporates a locking -
![Erection Anchors]()
Erection AnchorsThe erection anchor is designed for use with precast units during the lifting and turning/edge handling process. If desired, the anchor uses a shear plate and tension bar that wraps through the -
![Flat Plate Lifting Socket]()
Flat Plate Lifting SocketFlat plate lifting sockets are ideal for large, thin precast concrete elements such as slabs and shells. Due to the thinness of the element, it is difficult to place a normal lifting sleeve on them. -
![Teach Erection Anchor]()
Teach Erection AnchorFlat anchor GME Flat Anchor is an alternative to the plate anchor. The main use is in elements with a concrete strength at lifting in excess of 25N/mm 2 The Plate-Lift Flat Foot Anchor, also called -
![Sandwich Panel Anchor]()
Sandwich Panel Anchorrection Anchor, includes Erection Anchor with Shear Plate, Erection Anchor with Shear Plate and Cross Bar, Unilateral Erection Anchor, Edge Lift Erection Anchor, Sandwich Panel Erection Anchor, -
![Unilateral Erection Anchor]()
Unilateral Erection AnchorGME Unilateral Erection Anchor is similar Application as Erection Anchor. In contrast to the erection anchor, Unilaterial erection anchor can only be subjected to load in one direction. Its shape -
![Erection Anchor For Flat Lifting System]()
Erection Anchor For Flat Lifting SystemGME Erection Anchor main Area of Application: Thin-walled concrete units which must be tilted up. -
![Spread Anchor]()
Spread AnchorThe Spread Anchor is designed with a spread-foot that produces exceptional pull out capacity. This versatile anchor can be used in the face, back or edge of panels for back stripping and rotation -
![Two Hole Anchor]()
Two Hole AnchorGME Two Hole Anchor the Full safe working load can be achieved in a thin slab or when there islow concrete strength by using a tension bar in the second hole. Longer anchors with additional holes can -
![Tech Erection Anchor With Plate For Precast Concrete]()
Tech Erection Anchor With Plate For Precast ConcretePrecast concrete erection anchor are designed for use with precast elements during edge lifting and turning/handling. The anchors use shear plates and tie rods through the anchors to distribute the
What is a Flat Lifting System?
The flat lifting system is a tool specifically designed for lifting precast concrete components such as slabs, beams, and floor slabs. It includes lifting anchors, a clutch, and a groove former. These components work together to facilitate connection with the concrete component, enabling safe lifting. The system embeds anchors into the concrete during production and then engages them via a lifting clutch during transport.
Key Features of the Flat Lifting System
Safety Features:
The self-locking clutch is a key feature that ensures secure engagement during lifting. This innovative mechanism prevents accidental disengagement, significantly reducing the risk of operational errors or mishandling during the lifting process.
Versatility:
Our Planar Lifting System is designed to handle a wide range of precast concrete components. From wall panels to floors, stairs, and beams, this system is suitable for a variety of lifting applications, making it an adaptable solution for any precast concrete project.
Durability:
Constructed from high-strength steel or corrosion-resistant materials, the Planar Lifting System is built to last. Its durable design ensures reliable performance in harsh environments and over an extended service life, even with frequent usage in challenging weather conditions.
Ease of Use:
This system is incredibly easy to install and operate. Its simple installation process minimizes on-site setup time, reducing labor costs and enabling faster project completion. Whether you're lifting wall panels or floor slabs, the Planar Lifting System ensures smooth and efficient operations every time.
The Flat Lifting System Consists Of The Following Components
Ring Clutch
Erection Anchor
Recess Formers
How to Use the Flat Lifting System
Prepare the Precast Unit:
Before casting the precast concrete unit, insert the flat lifting anchors into the mold. These anchors should be securely placed to ensure proper engagement during the lifting process. Proper placement of the anchors is crucial for safety and efficiency.
Attach the Lifting Clutch:
Once the concrete has fully cured and the unit is ready for lifting, attach the lifting clutch to the pre-installed anchors. The clutch should engage smoothly, ensuring that the unit is securely held in place for the next stage of the process.
Lift the Unit:
Using a crane or other lifting equipment, carefully lift the unit. The flat lifting system allows for efficient and secure lifting, reducing the risk of accidents or damage. Ensure that the unit is lifted straight up to avoid any tilting or imbalance.
Disengage the Clutch:
After the unit has been placed in its desired position, disengage the clutch. The design of the flat lifting system allows for easy removal, making the process quick and efficient. Once disengaged, the clutch can be reused for the next unit, minimizing downtime and maximizing productivity.
Send Inquiry Now
Flat Lifting System vs Other Lifting Methods
| Feature | Flat Lifting System | Other Lifting Methods (e.g., slings, chains) |
| Ease of Use | Simple installation and operation, quick setup | Requires multiple rigging components, longer setup time |
| Safety | Self-locking clutches ensure secure attachment, reducing the risk of disengagement | Higher risk of accidental disengagement or slippage |
| Versatility | Suitable for various precast concrete units (walls, slabs, beams, etc.) | Often limited to specific lifting applications, less flexible |
| Durability | Made of high-strength steel or corrosion-resistant materials, durable | May wear down faster due to more components and frequent use |
| Speed | Quick engagement and disengagement, minimizing downtime | Slower, requires more setup and teardown time |
| Customization | Offers various load capacities and adaptability for different precast units | Limited customization based on the type of slings or chains used |
| Maintenance | Low maintenance, long-lasting, with minimal part replacement | Regular inspection and replacement of slings or chains are needed |
FAQ
Q: Can the Flat Lifting System be used for all types of precast concrete units?
A: Yes, the Flat Lifting System is highly versatile and can be used for a wide range of precast concrete units, including wall panels, slabs, beams, and stairs. It is suitable for any precast unit that requires safe and efficient lifting.
Q: What load capacities are available for the Flat Lifting System?
A: Our Flat Lifting System is available in various load capacities such as 2.5t, 5t, and 10t, and we can also provide customized solutions based on your project’s needs.
Q: How do I install the Flat Lifting System?
A: Installation is straightforward. First, insert the lifting anchors into the mold during casting. Once the concrete cures, attach the lifting clutch to the anchors, and then use a crane to lift the unit safely.
Q: Can I reuse the Flat Lifting System components?
A: Yes, the lifting clutch and anchors are designed for multiple uses. After each lift, simply disengage the clutch and they are ready to be used again.
Q: Is the Flat Lifting System weather-resistant?
A: Yes, the system is constructed with corrosion-resistant materials, making it suitable for use in harsh outdoor environments, such as rainy or salty coastal areas.
Q: How long does the Flat Lifting System last?
A: With proper maintenance, the Flat Lifting System can last for many years. The high-strength steel or corrosion-resistant materials used in its construction ensure long-term durability.
Q: What is the maintenance required for the Flat Lifting System?
A: The Flat Lifting System requires minimal maintenance. Regular inspection for any wear and tear on the lifting clutch and anchors is recommended. If components show signs of damage, they should be replaced promptly.
Great Magtech (Xiamen) Electric Co., Ltd. is one of the most professional flat lifting system manufacturers and suppliers in China, supplying the best wholesale service. Feel free to buy high quality flat lifting system from our factory.
