What is a Formwork Magnet System

Formwork magnet Application

With the rapid development of the prefabricated construction industry, magnetic fixed products such as shuttering magnets and ferrule insert magnet, magnets have been fully applied in the production of precast concrete components. The magnetic block is directly embedded in the formwork, so it is more convenient, more efficient, and more stable than the shuttering magnet.
Precast concrete magnetic formwork is composed of formwork steel bars and an embedded magnetic suction cup system. The width of the steel formwork is 60mm, the height is 70mm, and the lengths are 1 meter, 1.5 meters, 2 meters, 3 meters, 3.5 meters, 4 meters, etc., to be suitable for Different concrete element formwork.

Through the adhesive force of the magnetic block, the formwork is in close contact with the template, so that the formed formwork system is fixed. The formwork system that needs to be formed is thus fixed. Since the steel formwork and the magnetic blocks are integrated, no positional movement occurs and the formwork system is not deformed. At the same time, the simple and quick operation of the magnets makes the whole work safer and more stable. With the matching pry bar, the formwork magnet can be picked up and the steel formwork can be easily removed from the template. Since the magnets are located inside the steel formwork groove, concrete residue or other dirt does not cause damage to the entire formwork system.

Formwork magnet Application

Formwork Magnet Feature

High-performance magnets, a strong force secure the shuttering against sliding.

Easy positioning, fixing, and removal of the shuttering, either in manual, crane, or robotic handling.

Provide cost-effective, efficient solutions for the production of high-quality precast concrete elements.

Special tailor-made shape, height & length, based on your requirements.

Formwork Magnet Materials and Processing Techniques

Q235A Carbon Steel, Blackening Treatment

Using Q235A carbon steel, the magnetic flux is better than stainless steel and the cost is low.

Q235A Carbon Steel, Polished Treatment

Some customers are worried that the oxide layer on the surface will affect the cement surface, so they use polishing treatment.

Stainless Steel

Composed of a stainless steel template and an embedded magnet block, it is lightweight and convenient for the operation of the robotic arm.

Aluminum Alloy

Aluminum alloy template magnets are composed of aluminum alloy templates and embedded magnet blocks.

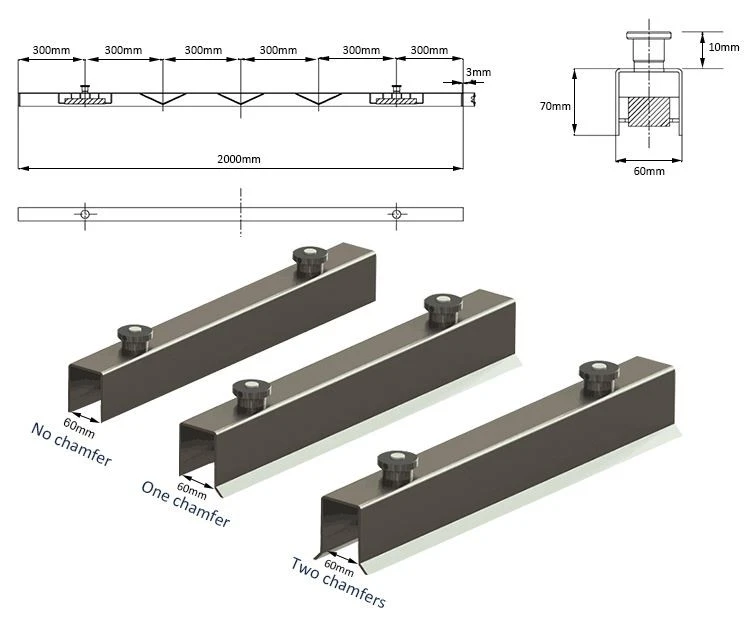

Specification of Formwork Magnet


Items no.	Length mm	Height mm	Nos. Magnet	Chamfers	Weight ca. kg
3200	500	70	1	no, one or two side	3,35
3210	1000	70	2	no, one or two side	6,70
3220	1500	70	2	no, one or two side	9,05
3235	2000	70	2	no, one or two side	11,40
3245	2500	70	2	no, one or two side	13,75
3250	3000	70	2	no, one or two side	16,10
3260	3500	70	2	no, one or two side	18,45
3275	4000	70	2	no, one or two side	20,80
3285	4000	70	3	no, one or two side	21,80

Note: We can produce various styles of side molds which can be customized according to drawings. Regular styles in stock

Kind of Formwork Magnet

Package of Formwork Magnet

Inner Package

Wooden Case Package

Factory of Formwork Magnet

GME has introduced internationally advanced fiber laser cutting machines, electro-hydraulic servo CNC bending machines, and several CNC lathes. It can independently develop and produce magnetic side molds of various sizes and suction forces. The 4-meter-long side mold can be bent and formed in one go, with high precision and excellent quality.

one-stop solution

professional team

high quality
