Rounded High Safety Factor Lifting Anchor Factory High Quality And Low Price

We supply rounded lifting anchor of high safety. We devoted ourselves to Precast concrete component fittings many years, covering most of Europe Southeast Asia, and Middle East market. We are expecting become your long team partner in China.

Send InquiryChat Now

Rounded Lifting Anchor of High Safety


Round hanging nails, round head hanging nails, fabricated building lifting systems, concrete hanging nails, PC component hanging nails, hanging nail manufacturers, Shenzhen hanging nails, export hanging nails, forged round head hanging nails, hangings conforming to precast concrete components The nail system and related lifting safety regulations are important guarantees for ensuring the safety of concrete prefabricated parts during production and transportation. The round rivets have the advantage of being easy to produce and use, and the worker has the shortest operating time.


1.Product Introduction

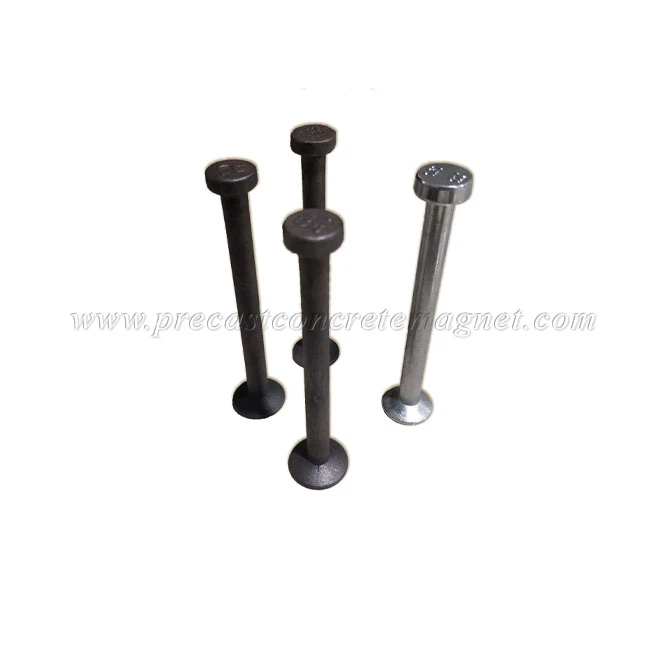

The fillet anchor lifting system consists of three parts, a rounded anchor, a rubber ball and a lifting hook.


Round lifting Anchor

• Material: Steel

• Function: Prefabricated lifting

• Tonnage: 1.3T-45T

• Surface treatment: galvanized or rust-proof

  Rounded Lifting Anchor of High Safety Rounded Lifting Anchor of High Safety Rounded Lifting Anchor of High Safety


Round Rubber Recess Former

GME Rubber Recess Forer can be used multiple times. The load mark on the former is easy for identification of the load group. Different color also can be provided. A permanent thread stud with one wing nut to tighten against the form to hold the former securely


  Rounded Lifting Anchor of High Safety  Rounded Lifting Anchor of High Safety   Rounded Lifting Anchor of High Safety

Lifting hook

Insert the spreader into the splitter and insert the stud into the universal spreader with your hand. The spreader can be attached to the hanger in just a few seconds and can be hoisted in all directions. To release the load, simply turn the spreader tongue to quickly remove the universal spreader.

 Rounded Lifting Anchor of High Safety  Rounded Lifting Anchor of High Safety


2.product Parameter (specification)


Round lifting Anchor

Rounded Lifting Anchor of High Safety

Rated load

Size(mm)

General specification

(Ton)

Diameter

LENGTH

1.3

10

35

40

45

55

65

85

100

120

240

2.5

14

55

65

85

120

140

170

210

240

280

4.0

18

65

75

95

120

150

180

210

240

340

5.0

20

75

95

120

170

180

210

240

340

480

7.5

24

85

95

115

120

165

200

240

300

540

10.0

28

85

100

115

135

170

200

250

340

680

15.0

34

140

165

200

300

400

800




20.0

38

200

240

340

500

700

1000




32.0

50

250

500

700

1200






45.0

50

250

500

700

1200






Other lengths can be customized according to your needs

Safety factor 3:1

Stainless steel SS304, SS316 can also be customized according to requirements

Surface treatment: primary color, electro-galvanized, hot-dip galvanized



Rubber Recess Former

Load (tons)

D

R

blob

1.3

60

30

2.5

74

37

5

94

47

10

118

59

20

160

80

32

230

115


Lifting hook

Load group

Load range

blob

(Ton)

(Ton)

1.3

1.3

2.5

2.5

5

4.0-5.0

10

7.5-10

20

15-20

32

32

T rod spreader can be customized

Safety factor 5:1


3.Product feature and application

The round head nails transfer the load to the concrete through the round feet, so that a relatively high allowable load can be obtained with relatively short nails. Even when used in thin walls, loads can be effectively transferred to concrete and steel. Due to the symmetrical shape of the rounded shaft of the rivet, unlike other types of pre-embedded rivets/bolts, there is no need for special positioning when placing the rivets.

In theory, the longer the rivets can withstand larger loads because they can build larger concrete load cones. The failure analysis in the sling application is based on the strength of the load cone.

Under normal circumstances, the weight of the new reinforced concrete prefabricated parts can be calculated according to the specific gravity of 24kN/m3.

In the case of high-density reinforced concrete precasts, the weight calculated by the specific gravity of 25 kN/m3 plus 70% of the weight of the steel bar is the weight of the preform.

Number and positioning of hangers

The number of slings is determined by the number of rivets used. If more than 3 slings are likely to generate static uncertainty, appropriate methods (eg, using distribution beams, pulleys, etc.) are required to ensure that all branches are equally loaded.

Wherever possible, more than one rivet shall be applied and the shank shall be positioned at a position where the line between them intersects the center of gravity of the preform. If this principle cannot be followed for special reasons, then depending on the distance between the peg and the center of gravity, the side pull will increase and will act on each peg.

Rounded Lifting Anchor of High Safety

4. Prodection details

Identification symbol

Round head slings and sling designs are clearly marked. Through the identification, the product model can be quickly understood to avoid misuse of the product, indicating that the maximum lifting weight is 2.5 tons, and the marking is at the nail head.

Rust protection

Generally, the nails are exposed to the environment before and after use, so it is necessary to deal with the rust prevention problem. After the nail is used, it will remain in the preform forever. If the nail is exposed, it is necessary to cover the surface with mortar in time. The cover specification depends on the construction specifications. It is also possible to use bolsters of different materials and techniques to deal with rust prevention problems, as detailed in the table below.

blob

Product Category

Application Environment

Uncoated

Suitable for dry environments

Surface galvanizing

Suitable for short-term exposure storage

Hot dip zinc

Long-term exposure to harsh environments

stainless steel

Corrosive environment


5.Installation and use

The round head rivet is placed in the mold through a semi-circular concave ferrule (commonly known as "adhesive" or "hemispherical rubber sleeve"). The concave ferrule functions as a fixed sling and forms a joint for forming a universal joint after the preform is formed (commonly known as " Concave surface of the hoisting jack" and "lifting clutch". Therefore, components of different load levels cannot be replaced with each other because of different design dimensions.

Another advantage is that the universal joint is supported by concrete when slanting, and the horizontal load is directly transmitted into the concrete. Therefore, when it is applied to a large and thin object, it is not necessary to convert the carrying capacity as with the sleeve lifting nail, and no additional reinforcement is required.

For example, slanting narrow and long prefabricated parts, additional steel bars must be placed in thin wall objects to adjust for possible lateral pulling forces.

After the wallboard prefabricated parts are cast flat, they need to be erected in an upright position for easy placement. This type of lifting requires component assistance to prevent damage and falling accidents when the component is turned over. We recommend using a prefabricated turning machine to place the wall panel vertically to reduce the risk of damage.

Round head size and margin

Please place the rivets in strict accordance with the minimum margins given in “Table 1”, or reduce the margins (such as additional reinforcement bars) by other effective construction methods. For details, please contact our technical staff.

The minimum distance (ar) of the “砼” round-headed peg from the side of the precast concrete part is 3 times the length of the peg (L) plus the nail to the cement surface value “s”, ie ar=3*(L+s) .
