What Is a Lifting Clutch for T Anchors?
The lifting clutch for T anchors is a reusable lifting device used together with spherical head anchors or T anchors in precast concrete lifting systems. It connects the crane hook or lifting gear to the embedded anchor, allowing precast concrete elements to be lifted, turned, and positioned during production, transport, or installation.
The Type TH lifting clutch is commonly used in pin anchor lifting systems. When correctly matched with the anchor load group and installed in the proper lifting direction, it helps create a secure lifting connection for precast wall panels, beams, slabs, and other concrete units.

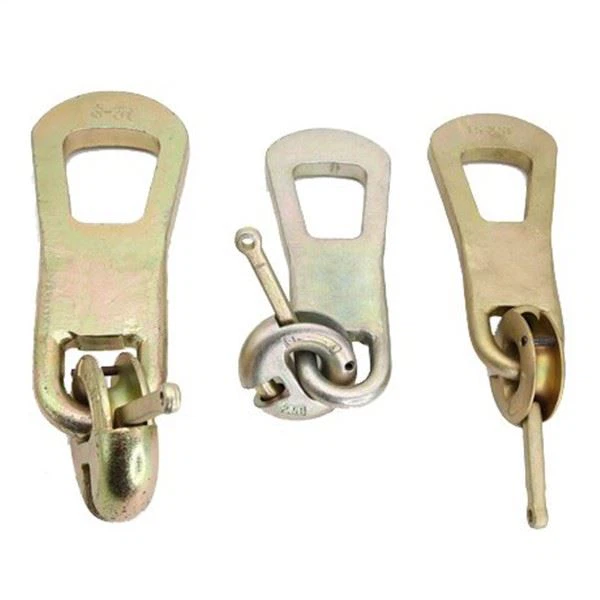

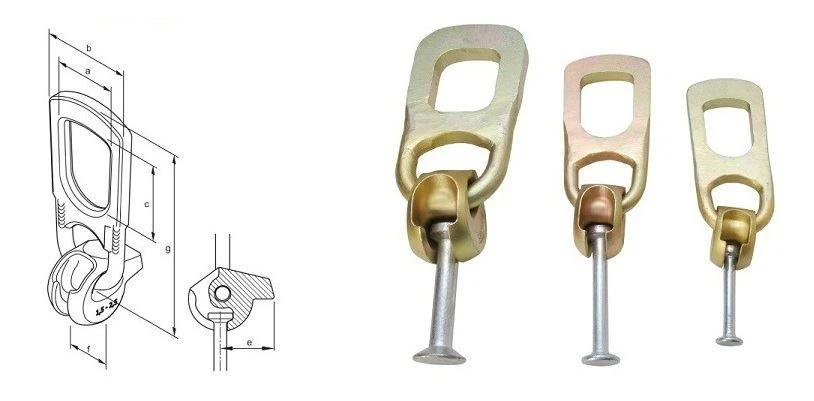

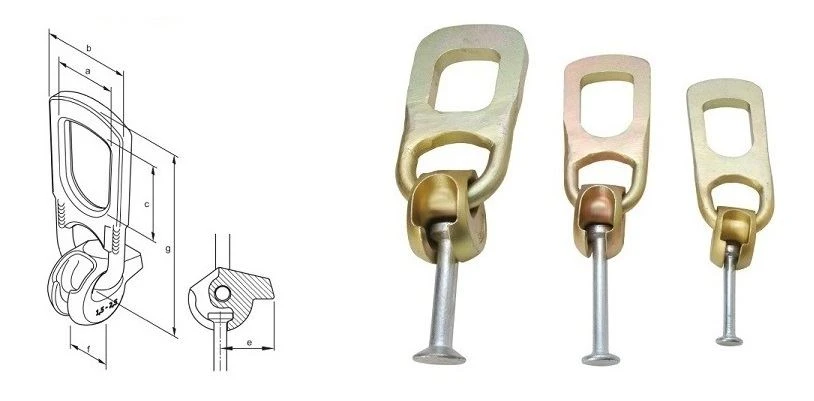

Lifting Clutches Type TH for T Anchors
|
|
|||||||||||

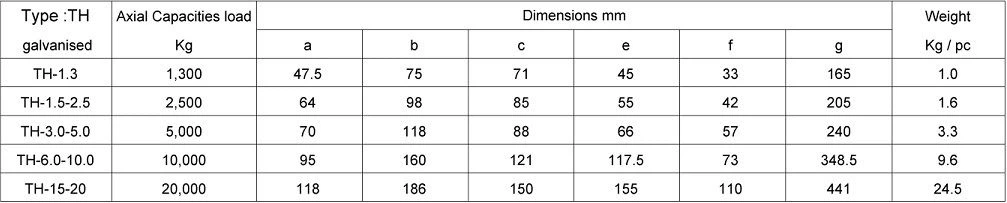

| NO. | Load Range | A | B | C | D | E | F | G | H | Ultimate capacity in tension (lbs) |
Weight (lbs ) |
| GMELPLE1T | 1T-13.T | 1-3/4'' | 7/8'' | 2-3/4'' | 15/32'' | 1-5/16'' | 2-1/8'' | 2-1/8'' | 1-1/16'' | 13000 | 2 |
| GMELPLE2T | 1.5T-2.5T | 2-1/8'' | 1'' | 3-3/8'' | 11/16'' | 1-5/8'' | 2-9/16'' | 1-1/2'' | 1-1/2'' | 25000 | 3.34 |
| GMELPLE4T | 3T-5T | 2-5/8'' | 1-15/32'' | 3-7/16'' | 29/32'' | 2-1/4'' | 3-3/8'' | 3-1/2'' | 2-1/16'' | 50000 | 7.57 |
| GMELPLE8T | 6T-10T | 3-1/8'' | 2'' | 4-3/8'' | 1-1/4'' | 2-15/16'' | 4-1/2'' | 4-1/2'' | 2-5/8'' | 100000 | 22.15 |
| GMELPLE20T | 12T-20T | 4-3/8'' | 2-13/16'' | 5-15/16'' | 1-11-16'' | 4-3/8'' | 5-5/8'' | 5-3/4'' | 3-7/16'' | 202222 | 44.76 |
The capacity loads are axial with a breakage safety factor equal to 5 for all types of lifting clutches (1,3 tons up to 32 tons). The Spherical Head Lifting Clutch comes in 6 different load groups. 1,3 to 32 tons, to suit the load carrying a range of ALL TYPES OF LIFTING ANCHORS with spherical heads.
Instructions for the Use of Spherical Head Lifting Clutches
Lifting and Turning
The Spherical Head Lifting Clutch is constructed in a way that an unintended coupling off (even without tension by a lifting device) is impossible. On lifting, attention must be paid to the fact that the lip is in the direction of the tension being applied.
The Spherical Head Lifting Clutch is suitable for lifting in all directions (axial, diagonal, and lateral tension).

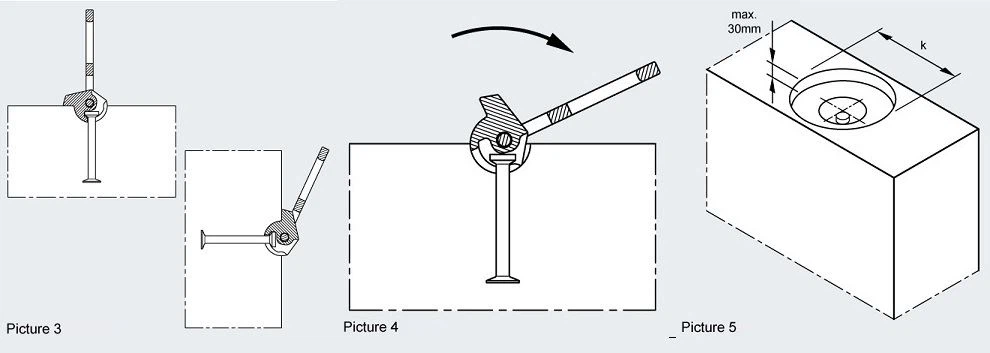

On the turning of units, special attention must be paid to the lip position of the Spherical Lifting Head Clutch. The lip must always be in the direction of the Tension (See picture 3).
What Materials Are The Lifting Clutch Made Of?
By Precision Casting and Forging, Donrex Precast produced CE certified lifting clutch (ring clutch) with a high-grade 35CrMoV special casting head clutch and forged bolt, to ensure stable quality and high performance. Super Cast Alloy Locking Ring. Lifting Ring is Forged Alloy Steel. 100% Crack Tested. Safety Factor 5:1Concrete Lifting Clutches have been exclusively designed and approved for use with Lifting Anchors.
They are available in a range of Working Load Limits. They have been designed so that they cannot spontaneously disengage whilst the system is under load at any orientation, provided they are connected to the head of the correct anchor in the recess. When the lift is complete and the load released, the clutch is quickly and simply disengaged.
Identification markings are required for the Lifting Eye to comply with AS 3850 - 2003. The Lifting Eye must be proof load tested every 12 months in accordance with AS 3850-2003. The Lifting Eye has a FOS (factor of safety) of no less than 5 in accordance with AS 3850 - 2003.
The Spherical Head Lifting Clutch is constructed in a way that an unintended coupling off (even without tension by a lifting device) is impossible. On lifting, attention must be paid to the fact that the lip is in the direction of the tension being applied. The Spherical Head Lifting Clutch is suitable for lifting in all directions (axial, diagonal, and lateral tension). On the turning of units, special attention must be paid to the lip position of the Spherical Lifting Head Clutch. The lip must always be in the direction of the Tension.
Releasing the Spherical Head Lifting Clutch:
To release the Spherical Head Lifting Clutch, the tension on the clutch must be removed. Thereafter, the Spherical Head Lifting Clutch can be released by turning the handle in the opposite direction to the lip
Corrosion Protection:
Corrosion protection can be increased by installing the Spherical Head Anchor in a sunken position. The recess former must be installed to ensure the functionality of the Spherical Head Anchor according to these installation instructions and must have the minimum dimensions in accordance.
Dimensions for Sunken Assembly:
The Spherical Head Lifting Clutch counts as a lifting device and is there for subject to regular inspection (at least once a year). This must be executed by an expert, and it is the responsibility of the user.
Particular safety procedures and regulations must be followed to extend the lifespan and durability of the Spherical Head Lifting Clutch. The right hook size and form should always be checked and ensured.
Why Choose GME:
Great Magtech supplies lifting systems and accessories for precast concrete production and installation. For Type TH lifting clutches, we can support standard load groups, OEM supply, and product matching with related anchors and recess formers.
Our advantages include:
Product support for precast lifting systems
Multiple load group options
OEM and ODM service
Export packing support
Related products available, including lifting anchors and recess formers
Product information support before quotation
FAQ
Q: What is a Type TH lifting clutch used for?
A: A Type TH lifting clutch is used with T anchors or spherical head lifting anchors to lift, turn, and handle precast concrete elements such as wall panels, beams, slabs, and stairs.
Q: What load groups are available?
A: Type TH lifting clutches are commonly available in different load groups from 1.3 tons to 32 tons. The correct load group should be selected according to the anchor type, element weight, lifting direction, and safety requirements.
Q: Can one lifting clutch be used with different anchors?
A: Only compatible anchors within the correct load group and system type should be used. The clutch must properly engage with the anchor head and recess former.
Q: Can the lifting clutch be reused?
A: Yes. Lifting clutches are reusable lifting devices, but they must be inspected before use. Any clutch with cracks, deformation, heavy wear, unclear markings, or damaged locking parts should not be used.
Q: What should be checked before lifting?
A: Operators should check the clutch condition, anchor compatibility, load group marking, coupling position, lifting direction, and whether the clutch is fully engaged with the anchor.
Q: What information should I provide for a quotation?
A: You can provide the required load group, anchor type, quantity, surface finish, project application, and whether matching anchors or recess formers are also needed.
