Great Magtech (Xiamen) Electric Co., Ltd. is one of the leading manufacturers and suppliers of cape ring clutch in China. Please feel free to wholesale high quality cape ring clutch from our factory. If you have any enquiry about cooperation, please feel free to email us.
GME Cape Ring Clutch consists of a clutch body, a curved bolt, and a high-strength bail. the curved bolt is free to move in any direction. The clutch in each load group matches the shape of the recess former and incorporates a locking bolt that engages in the head of the cast-in anchor.

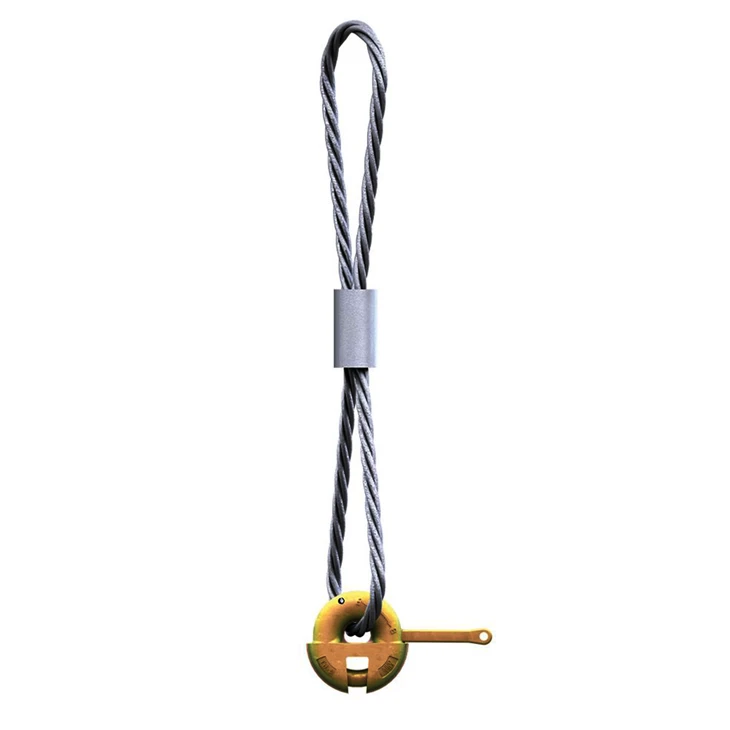

The Cable Ring Clutch is a lifting assembly consisting of a cable with swage, clutch, and curved bolt handle. To correctly use the clutch, slide the curved bolt to the open position, align it with the lifting anchor opening, then slide it to the closed position.
The Cable lifting ring clutch is an efficient, fast method in a connect/disconnect lifting system allowing precast concrete elements to be handled safely, with reliable and repeatable use. The high-quality, engineered ring clutch is dimensionally measured, mechanically load tested and magnetic particle inspected to ensure the manufacturing process meets and/or exceeds minimum design requirements.
Lifting loops with changed wire length as per customer's requirements
Cape Ring Clutch Features
Installation and release are safe and simple.
After the clutch is inserted over the anchor head and into the recess, the curved bolt is rotated into the closed position. The rotation of the standard bail is a full 360°.
Once engaged and supporting 400 lbs of load, the ring clutch cannot be released.
Made with an electro-galvanized finish
Specification of Cape Ring Clutch
| ||||||||||
| Number# | Load Range (T) | L | W | A | D | E | F | H | Ultimate capacity in tension (lbs) | Weight(lbs) |
| GME001CB | 2-3 | 23-3/4'' | 4-7/8'' | 10-1/2'' | 1/2'' | 1-1/8'' | 3-1/8'' | 2-1/2'' | 30000 | 3.87 |
| GME002CB | 4-6 | 25-1/2'' | 5-5/8'' | 10-5/8'' | 3/4'' | 1-7/16'' | 4-1/16'' | 3'' | 60000 | 7.38 |
| GME003CB | 8-12 | 33-1/2'' | 6-3/8'' | 15-1/2'' | 15/16'' | 2'' | 5-15/16'' | 3-3/8'' | 120000 | 22.11 |
| GME004CN | 12.5-22 | 62'' | 8/7-8'' | 21'' | 1-3/8'' | 2-7/8'' | 8-1/2'' | 3-5/8'' | 220000 | 60.63 |
Package of Cape Ring Clutch
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
How to check and maintain the ring clutch and wire rope ring clutch?
1. The ring clutch should be cleaned prior to inspection to ensure any cracks or damage can be seen by the inspector
2. Visually inspect the cable for any kinks and bends. Check for broken cables/wires/strand braids, cable compression set, cable corrosion scars, and excessive damaged or frayed wires. If the ring clutch does not meet any of these criteria, it must be taken out of service.
3. Check whether the cable connector is damaged or severely worn. Check the cable coupling for signs of cable slippage. If signs of heating are present, use of the device must be discontinued
4. Visually inspect the clutch body for any splits, cracks, deformation, overheating or damage. If a clutch body does not meet any of these criteria, it must be taken out of service.
