Great Magtech (Xiamen) Electric Co., Ltd. is one of the leading manufacturers and suppliers of magnetic recess former magnetic recess members for construction in China. Please feel free to wholesale high quality magnetic recess former magnetic recess members for construction from our factory. If you have any enquiry about cooperation, please feel free to email us.

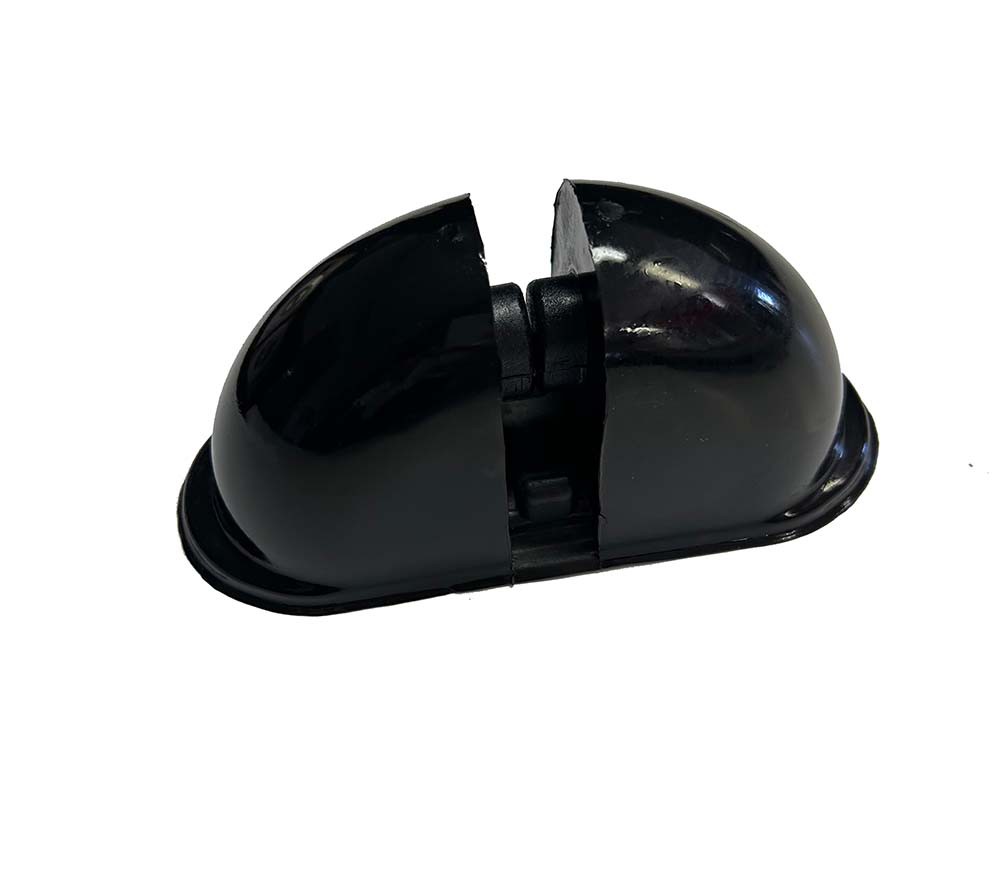

Description of Magnetic Recess Former

The Quik Lift Magnetic Recess Member for Flat Anchors is designed with robust magnetic circuits built-in for quick and efficient mounting/holding of recess members to steel forms.

The magnetic recess formers are used for easy attachment to the formwork. The magnetic recess formers in the open position will be put over the anchor head. Closing the rubber recess former will fix the anchor tightly. Afterward, the rubber recess former can be set to the formwork together with the anchor. Magnetic Recess Members are available in 1.25, 2, 5, 10, and 26-ton sizes.

With these magnetic recessed parts, the magnets are integrated directly into the base of the region, eliminating the need to purchase a separate magnetic base plate.

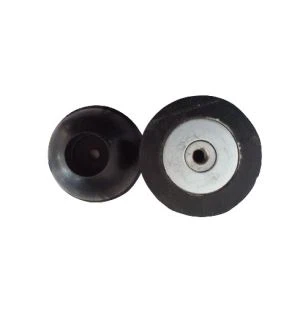

The front, color can be customized,	Side	Back (Built-in strong magnet)

Specification of Magnetic Recess Formers


Model	1.25T	2.5T	5T	10T	26T
A(mm)	62	98	131	190	233
B(mm)	35	50	60	85	125
C(mm)	29	44	53	80	111
D(mm)	48	70.5	88	130	184
E(mm)	17	22	32	47	70
F(mm)	**	56	67	103	150
G(mm)	25	27	38	51	70
Medium Width	6.5	10	15.5	20	33
