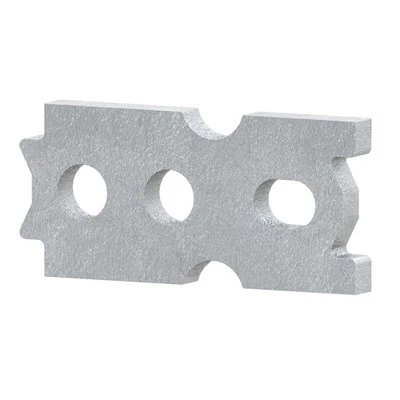

Erection Head Anchor

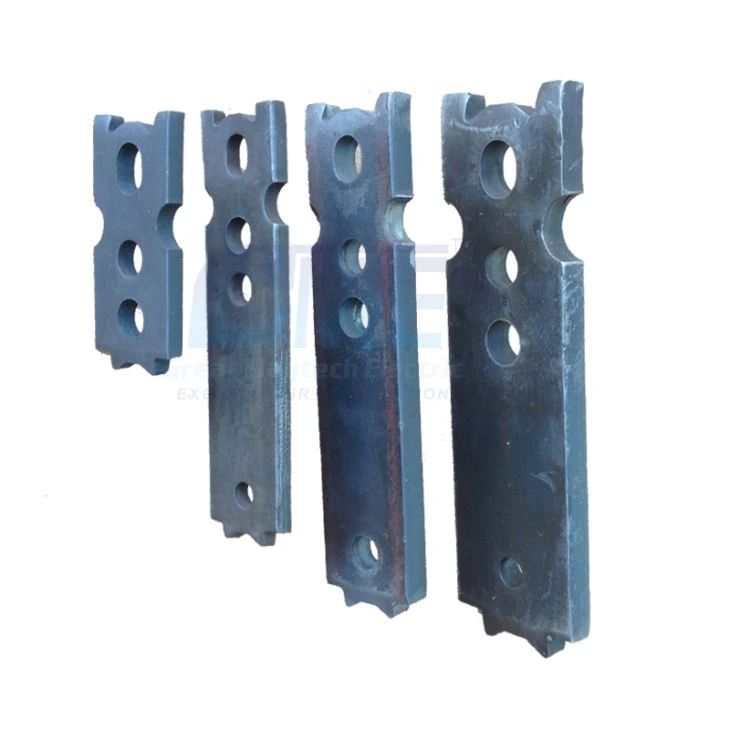

Two-Hole Erection Anchor Description

The lift Plate Anchor is manufactured with a wide base designed with a plate welded to the bottom to increase its pull-out capacity in concrete, The wide base allows the anchor to have an increased safe working load. The bottom plate allows reinforcing to be applied to the anchor to maximize the capacity. Available in 2T, 4T, and 8-Ton sizes.Available in plain or hot-dipped galvanized finish.

Specification of Two-Hole Erection Anchor


Part Number	Ton	Ring Clutch System	Width	Length	Thickness	HD Hole Diameter	A	B	N	Anchor Ultimate Mechanical Load in Tension (lbs)	Weight Per Piece(IBS)
GMEQL403G	2T	2T-3T(QLO01)	2"	4-1/4"	3/8"	5/8"	2-3/8"	1-3/32"	1-13/16"	16000	0.71
GMEQL075G	4T	4T-6T(QL002)	2-1/2"	7-7/16"	5/8"	3/4"	3-3/16"	1-1/4"	2-1/2"	32000	2.87
GMEOL185G	8T	8T-11T (QLO03)	3-3/4"	13-1/4"	3/4"	1"	4	1-3/4"	3-1/8"	64000	9.4
Other lengths and load capacities are available on request. Safety factor 3:1. Stainless steel 304(A2)/316 (A4) available on request Surface: Black (B)/Galvanized (Z.P)/Hot dip galvanized (H.D.G)

application of erection anchor

How to Choose a Two-Hole Erection Anchor

Thickness and type of precast element: For thinner precast elements, such as thin interior wall panels or floor slabs, selecting a stud system that can accommodate these specific needs is critical.
Choose a variety of nailing methods: To accommodate precast concrete elements of different sizes and weights, a nailing system that provides sufficient load-bearing capacity and stability should be selected.
Consider lifting force and specific gravity: When determining the vertical anchoring system, the precast concrete element's lifting force and specific gravity also need to be considered to ensure that the hanging nail system can effectively support the precast element under the lifting force.
Special considerations: For some precast elements with special shapes or sizes, such as 90° angle lifting systems, special attention needs to be paid to their size and lifting point location to ensure that the hanging nail system can accommodate these special needs.
