Forged Foot Erection Anchor Fleet-Lift Erection Anchor

Send Inquiry

Details

Forged design creates 20% higher load capacity than stamped anchors, can result in less anchors required Erection Head Design for use in edge lifting of panel, no spalling of concrete Anchor is same thickness and width as stamped anchors, uses std P99 Recess parts Loads match existing P91 hardware, no new hardware required One length per insert tonnage, less inventory required Plain or Galvanized finishes available, meets non-rusting needs 3. Safety:4 Times Tensile Strength Test 4. Material: Alloy Steel St 52-3 5.Size: 1.25 tons to 22 tons avaliable

Category

Flat Lifting System

Share to

Chat Now

Description

Great Magtech (Xiamen) Electric Co., Ltd. is one of the leading manufacturers and suppliers of forged foot erection anchor fleet-lift erection anchor in China. Please feel free to wholesale high quality forged foot erection anchor fleet-lift erection anchor from our factory. If you have any enquiry about cooperation, please feel free to email us.

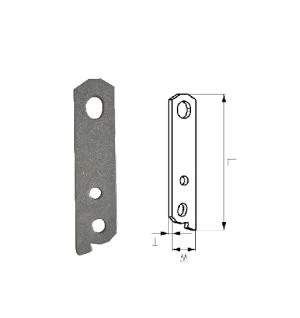

Forged Erection Anchors are designed with safe working loads of 3T, 6T, and 10T. The anchor is designed with an erection head, square shaft and round 'SL style' foot. There is one length for each tonnage available. The anchor has a notch in each side to accommodate a shear bar for shear conditions. In each anchor, there are two holes which a tension bar or rebar can be utilized for greater load capacities. The Forged Erection Anchor with Shear Plate eliminates the need for a shear bar.

forged foot erection anchor
