Great Magtech (Xiamen) Electric Co., Ltd. is one of the leading manufacturers and suppliers of magnetic shuttering solutions for precast concrete formworks in China. Please feel free to wholesale high quality magnetic shuttering solutions for precast concrete formworks from our factory. If you have any enquiry about cooperation, please feel free to email us.

Product Feature:

Material: Power Neodymium Magnets, Steel Parts, Steel Handle
Surface Treatment: Nature or Color Zinc Plated
Max Working Temperature: 80℃ or as per needs

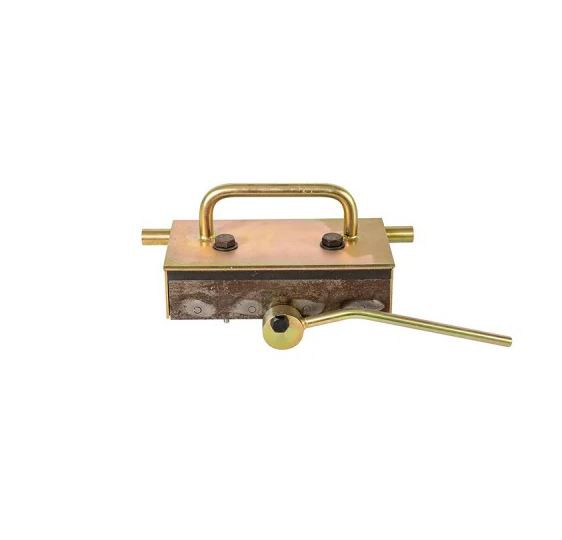

Universal Shuttering Magnet Description:

Shuttering Magnet is a fantastic new generation magnetic technology for positioning
in casting bed with integrated Magfly feet, which are widely applied into new green precast concrete construction industries. The special magnetic circle design made it much more convenient to control

shuttering magnet for precast concrete formworks

Magnetic Force with the Handle:
For the previous magnetic box system with a button ON/OFF, an extra steel lever will be used to remove, the magnet in the productive procession. While It can be fitted with adapters and accessories easily with two M16x1.5 threaded holes. Alternative threading positions and sizes are possible on request.

Magnetic-System Technical drawings

Product Parameters:

Part No.	Magnetic force [Kg]	Weight [kg]	l1 [mm]	l2 [mm]	b1 [mm]	b2 [mm]	h1 [mm]	h [mm]
GME- 1000	1000	5,0	230	270	60	115	50	65
GME- 1600	1600	7,5	230	270	85	140	50	65
GME- 2000	2000	10,0	230	270	110	165	50	65
GME- 2500	2500	12,5	230	270	135	190	50	65
GME- 3000	3000	15,0	230	270	160	215	50	65
