Great Magtech (Xiamen) Electric Co., Ltd. is one of the leading manufacturers and suppliers of polyurethane magnetic holding shuttering magnets pl/ep magnets in China. Please feel free to wholesale high quality polyurethane magnetic holding shuttering magnets pl/ep magnets from our factory. If you have any enquiry about cooperation, please feel free to email us.
Description of Shuttering Magnets PL/EP magnets

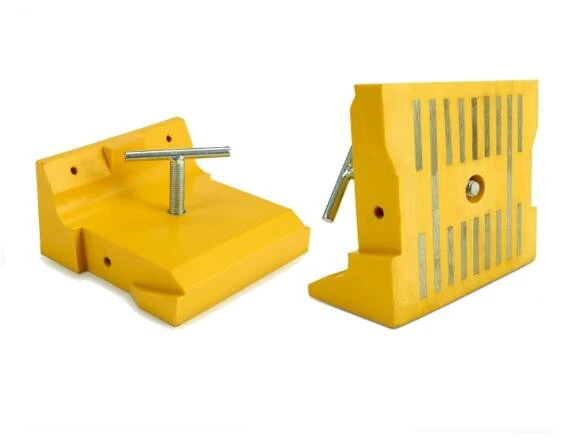

The clamping shuttering magnet consists of a stable plastic housing with a high-strength magnetic disk. The central part is made of magnetic polyurethane and measuring 100*100, with a slipping resistance of 70 kilos, and equipped with a release handle. Makes handling so very easy. The magnet can be pushed along the steel table with ease and precisely position; after applying light pressure it applies its full magnetic force. Releasing the PL/EP is done simply by operating the eccentric bracket with the hand or foot.
Specification of Shuttering Magnets PL/EP Magnets
| ||||
| Number no. | Dimensions (mm) | Magnetic force（kg） | Demangnetization | Fixing |
| PL/EP 350-A | 160x150x80 | 350 | Handle inclued | 4 holes of 6mm for fixing the metal casing |
| PL/PE 350-B | 157x150x80 | 350 | Lever inclued | 3 holes of 6mm for fixing the metal casing |
| PL/EP 220 | 150x120x80 | 220 | At the sides the unit can be lifted with a hammer or a lever | 3 holes of 6mm for fixing the metal casing |
| PL/EP 145 | 140x60x30 | 145 | At the sides the unit can be lifted with a hammer or a lever | Manually weldable |
| PL/EP 200 | 200x60x30 | 200 | At the sides the unit can be lifted with a hammer or a lever | Manually weldable |
Application of Shuttering Magnets PL/EP Magnets
Ideal areas of use are formwork complements and window or door recesses in wood or aluminium. Due to its light weight and excellent handling properties, PL/EP magnets can also be used as support magnets for other purposes. For example, the most widely varied templates are available for fastening without great expense by simply screwing onto the plastic housing.
Advantage of Shuttering Magnets PL/EP Magnets
Shuttering Magnets and formwork magnets have brought great convenience to the construction industry. First of all, it speeds up the installation of formwork, reduces labor costs, and saves a lot of money for construction companies. Second, the stability of the template is greatly improved. Strong magnetic force ensures that the formwork stays securely in place even under external force. This stability results in higher quality concrete structures with precise dimensions. In addition, template magnets and template magnets are reusable, which is cost-effective in the long run.
Maintain of Shuttering Magnets PL/EP Magnets
1. When using the magnetic box, avoid debris on the bottom, which will affect the adsorption force between the magnetic box and the mold table.
2. Check whether the bottom of the magnet block and the platform are clean and flat. If there is foreign matter on the bottom of the magnetic box, it can be cleaned with a stainless steel scraper
3. Avoid throwing and smashing randomly, and do not throw long distances when removing the formwork. Avoid using hard tools (such as large iron hammers) to knock, bruise, etc. to cause deformation of the magnetic box.
4. The ambient temperature for the use and storage of the magnetic box should not be higher than 80°C, and there should be no corrosive media such as strong acid and strong alkali around
Our customer evaluation:
Our customers are very satisfied with our products, we can guarantee that customers will get the products in good condition and meet the requirements
