Great Magtech (Xiamen) Electric Co., Ltd. is one of the leading manufacturers and suppliers of precast concrete pre-buried magnetic fixing in China. Please feel free to wholesale high quality precast concrete pre-buried magnetic fixing from our factory. If you have any enquiry about cooperation, please feel free to email us.

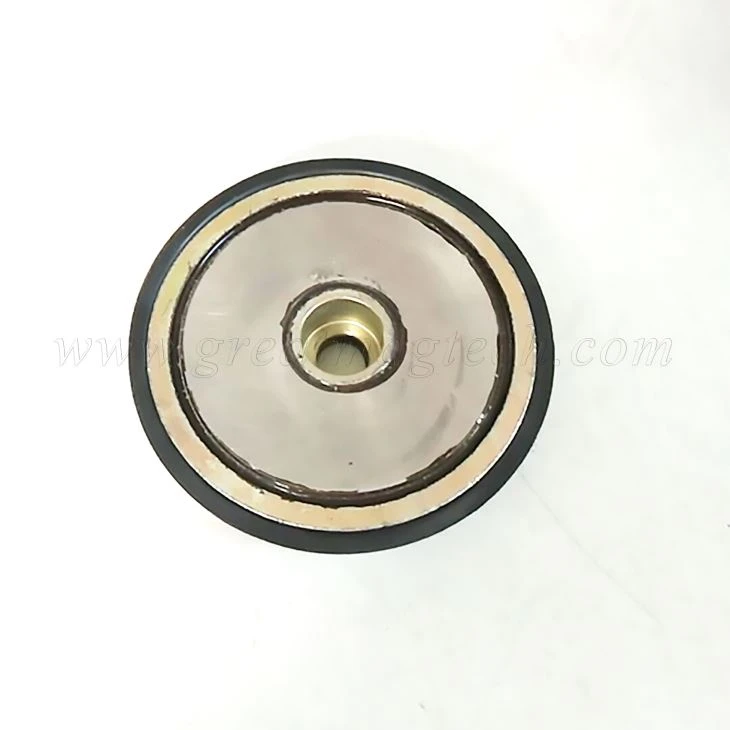

PRECAST CONCRETE PRE-BURIED MAGNETIC FIXING
The pre-embedded fixed magnet is designed and manufactured to fix the grouting hose of the grouting sleeve. The product can be used repeatedly for a long time, saving cost, convenient use and simple operation. Once the fixture is positioned, due to the super-strong magnetic adsorption, it can effectively avoid looseness, accurate positioning and ensure component quality.
The fixed magnetic seat has a diameter of 40 mm, a thickness of 6 mm and a suction force of 15 kg, which is very helpful for the positioning of the plastic hose in the precast concrete process. Since the magnetic base is very thin and we have internal threads on the bottom, it is easy to remove the magnetic base from the concrete with a simple tool.
By properly designing the magnetic structure, we can make this fixed magnet into various shapes. Moreover, the rubber sleeve is wrapped outside, so that the cement can not damage the magnet itself and prolong the service life. Once the holder is positioned, due to the strong magnetic adsorption, it can effectively avoid slipping and loosening, thereby improving construction efficiency.
Reasons for magnetic attenuation:
The rust prevention, sealing performance and maintenance of the product are convenient, that is, the service life of the product. The reason why the magnetic box may cause the magnetic force to decay during use is that the combination between the magnetic surface and the platform is not tight enough. Concrete or other garbage accumulates on the magnetic surface during work, which affects the close fitting and causes suction attenuation. At the same time, if concrete or other garbage infiltrates into the magnetic box, or the switch rusts, affecting the use of the switch, it may also cause the magnetic surface to be in close contact with the platform, thereby causing magnetic attenuation.Product suction, direct, internal thread size can be customized, please contact us for consultation.
| 预埋件型号表 | |||||
|---|---|---|---|---|---|
| ITEM | SIZE | Screw | Plating | Suction | Weight |
| D40-1 | D40*8WITH M8 | M8 | Magnet + iron shell | ≥30kgs | 0.12kgs |
| D40-2 | D40*8WITH M10 | M10 | Magnet + iron shell | ≥30kgs | 0.12kgs |
| D40-3 | D40*8WITH M12 | M12 | Magnet + iron shell | ≥30kgs | 0.12kgs |
| D50-1 | D50*8WITH M10 | M10 | Magnet + iron shell | ≥60kgs | 0.15kgs |
| D50-2 | D50*8WITH M12 | M12 | Magnet + iron shell | ≥60kgs | 0.15kgs |
| D50-3 | D50*8WITH M14 | M14 | Magnet + iron shell | ≥60kgs | 0.15kgs |
| D50-4 | D50*8WITH M16 | M16 | Magnet + iron shell | ≥60kgs | 0.15kgs |
| D54-1 | D54*10mmWITH M18 | M18 | Magnet + iron shell | ≥65kgs | 0.20kgs |
| D54-2 | D54*10mmWITH M20 | M20 | Magnet + iron shell | ≥65kgs | 0.20kgs |
| D54-3 | D54*10mmWITH M24 | M24 | Magnet + iron shell | ≥65kgs | 0.20kgs |
| D70-1 | D70*8WITH M18 | M18 | Magnet + rubber housing | ≥160kgs | 0.35kgs |
| D70-2 | D70*8WITH M20 | M20 | Magnet + rubber housing | ≥160kgs | 0.35kgs |
| D70-3 | D70*8WITH M24 | M24 | Magnet + rubber housing | ≥160kgs | 0.35kgs |
Packaging： Cartons
Minimum order quantity: 100 sheets/piece/block
Delivery period: 30 days
