Drop In Anchor

Great Magtech (Xiamen) Electric Co., Ltd. is one of the leading manufacturers and suppliers of drop in anchor in China. Please feel free to wholesale high quality drop in anchor from our factory. If you have any enquiry about cooperation, please feel free to email us.

Drop-In Anchors Introduction：

Drop-in anchors are female concrete anchors designed for anchoring into concrete. Drop the anchor into the pre-drilled hole in the concrete. Using a setting tool expands the anchor within the hole in the concrete. As the anchor is tightened, a lip on the underside of the head expands and locks in place against the concrete. Drop-in anchors are available in several different sizes ranging from 1/4" to 3/4". The most common size used for anchoring into concrete is 1/2". Precast concrete anchors are ideal for use when making light-duty fastenings into concrete, such as when attaching shelves, door frames, cable trays, and other similar items. They are also suitable for use in brickwork, stonework, and blockwork. Drop-in anchors should not be used in dynamic or seismic applications. For installing drop-ins into concrete, a hammer drill and masonry bit should be used to create a hole in the concrete. The size of the hole should match the anchor size being installed, with a tolerance of 1/8" for standard anchors and 3/16" for heavy-duty anchors. Using a setting tool or impact wrench, tighten the drop-in into the pre-drilled hole until it is flush with the surface of the concrete. Finally, attach the fixture to be anchored into place using an appropriate screw or bolt and fastener. Precast concrete anchorss are a simple and effective way of anchoring items into concrete structures. They are available in various sizes and formats, making them suitable for many different applications.

Code	Size	Dimensions(mm)
		Length	Depth of thread
GME70006025	M6*25	25	10
GME70008030	M8*30	30	14
GME70010040	M10*40	40	19
GME70012050	M12*50	50	22
GME70016065	M16*65	65	30
GME70020080	M20*80	80	38
Other different lengths are available upon request Stainless steel 304(A2)/316(A4) are available upon request Surface: Black (B)/Zinc plated(z.p)/hot dipped galvanized(H.D.G)are available

Feature of Drop-In anchors :

Drop-in anchors precast concrete anchors are designed for quick and easy installation. They come in a wide range of sizes, from 1/4 to 3/8 inch, and can accommodate various wall thicknesses. The anchor body is made from heavy-duty steel with zinc plating that resists corrosion. The design also includes an internal expansion plug that keeps the anchor securely in place. Drop-in anchors are considered a safe and reliable choice for most standard wall installations. They are commonly used in residential, commercial, and industrial applications to secure shelving, supports, fixtures, and many other items. They are an ideal choice for mounting handrails and can also be used to hold light fittings. Because of their quick and easy installation, drop-in anchors can be a great time saver in any construction project. They are also easy to remove if the need arises. With their reliable performance, versatility, and affordability, drop-in anchors are an excellent choice for almost any wall installation.

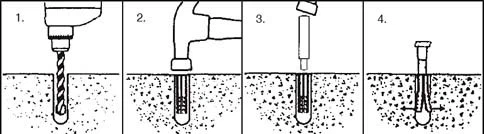

Installation Procedure of Drop-In Anchors



1. Drill Hole(the same drill depth as anchor length.)
2. insert anchor.
3. Set the anchor with the setting tool.
4. The Drop-In Anchor is set and ready to accept any length bolt or threaded rod.

Drop-In Anchors precast concrete anchors Key Benefits





Internal threads facilitate bolt removal and repair work

The lip version mounts flush for easy inspection and consistent insertion



Standard push-in mounting can be mounted flush or below the surface of the substrate.

The knurled body increases vibration resistance and prevents the anchor from slipping out
