Great Magtech (Xiamen) Electric Co., Ltd. is one of the leading manufacturers and suppliers of post tension wedge in China. Please feel free to wholesale high quality post tension wedge from our factory. If you have any enquiry about cooperation, please feel free to email us.

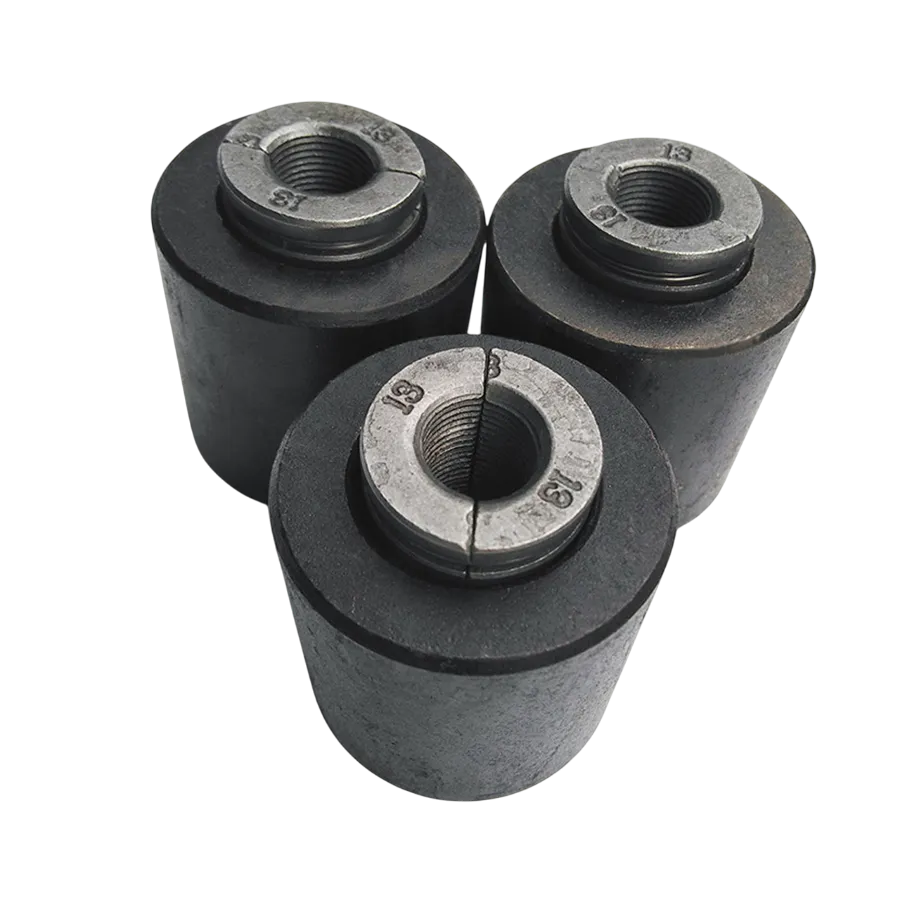

What is a post-tension Wedge?
Post-tension wedges are generally composed of four parts: anchor ring, clamp, pad, and screw. They are suitable for anchors used for prestressed concrete in engineering construction. They are generally used in bridge construction, pre-installed and positioned, and then poured with concrete. They are buried at both ends of the concrete, that is, at both ends of the corrugated pipe, and the end faces are set for stability during jack tensioning.
Single-hole anchors can be used to lock steel strands with a standard strength grade of 2000 Mpa and below. The commonly used diameters are 12.7mm/15.2mm/15.7mm, and other size standards can be customized.
Product Portfolio：

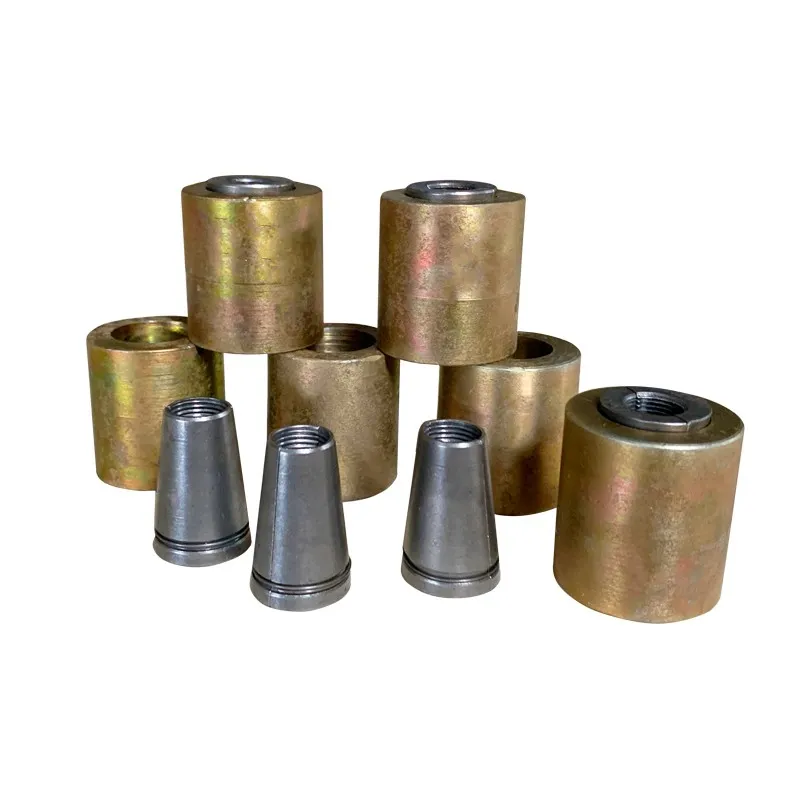

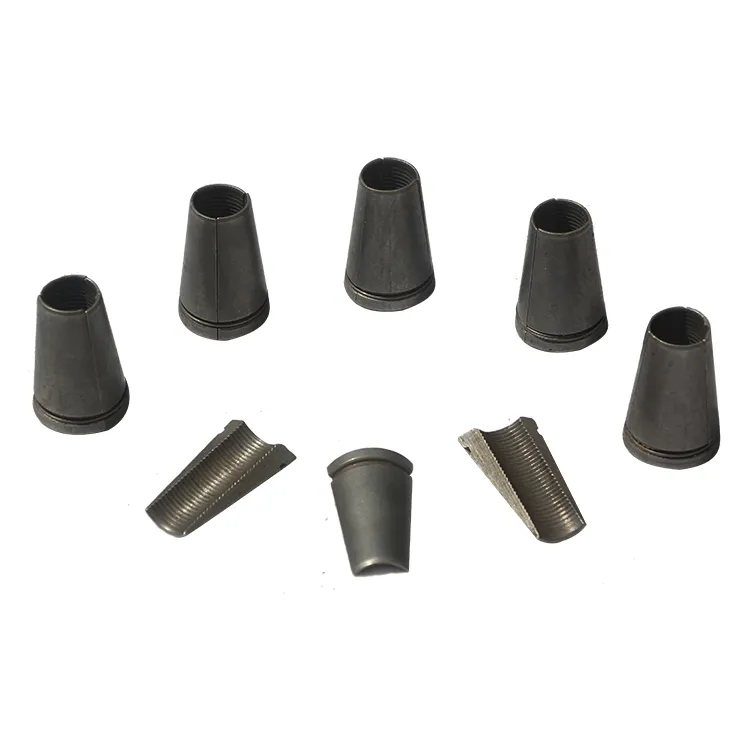

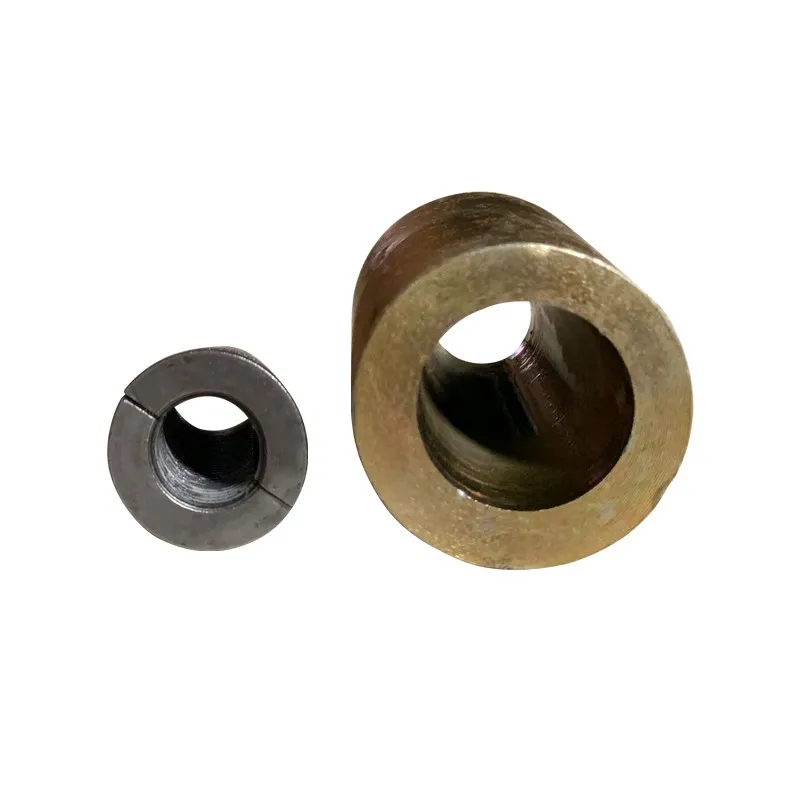

| Barrel | Wedges |
| A cylindrical component fitted over a single prestressing strand at an anchorage that transfers the strand force to the anchor via tapered wedges located within its internal conical recess. A set of barrels can be used with a mono-strand stressed tendon as an alternative to an anchor block. | Tapered high-strength steel components with internal serrations that grip and hold prestressing strands during and after tensioning. Three parts of wedges are placed around a strand and compressed onto it as they are drawn into conical recesses in the anchorage during jack retraction. |
 |
 |
Product-Related Parameters：
|
Components for one full set
|
Anchor head+wedge+bearing plate+spiral reinforcement
|
|
Anchor
|
|
|
Round anchorage
|
1-55 holes
|
|
Flat anchorage
|
2-5 holes
|
|
Anchorage diameter
|
5mm-19mm
|
|
Material of round anchor head
|
45# high-quality carbon construction steel
|
|
Material of flat anchor head
|
40Cr steel
|
|
Wedge
|
|
|
Material of wedge
|
High-class alloy steel 20CrMnTi
|
|
Wedge type
|
Two-chip and three-chip
|
|
Material of bearing plate
|
HP300
|
|
Material of spiral reinforcement
|
Q235
|
|
Surface treatment
|
Anti-rust treatment
|
|
MOQ
|
100sets
|
|
Package
|
In cartons or wooden boxes
|

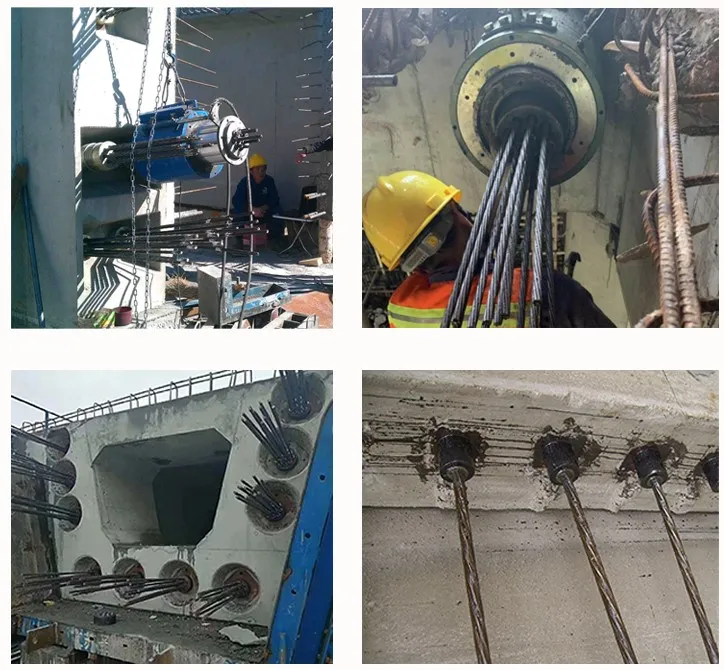

Application of Post-Tension Wedge:
Highway bridges, railway bridges, urban interchanges, urban light rail, high-rise buildings, water conservancy and hydropower dams, ports and docks, rock slope anchoring, foundation reinforcement, tunnel and mine rock anchor top plates, prestressed grids, subways, large building halls, warehouses and workshops, tower buildings, heavy object lifting, sliding membrane intermittent propulsion, bridge and tunnel jacking, large containers and ships, sleepers, bridge bearing replacement, bridge and building reinforcement, steel bar engineering, anti-magnetic and anti-corrosion engineering, etc.

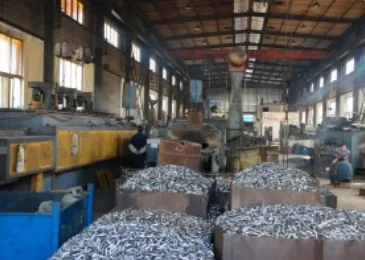

Production Display

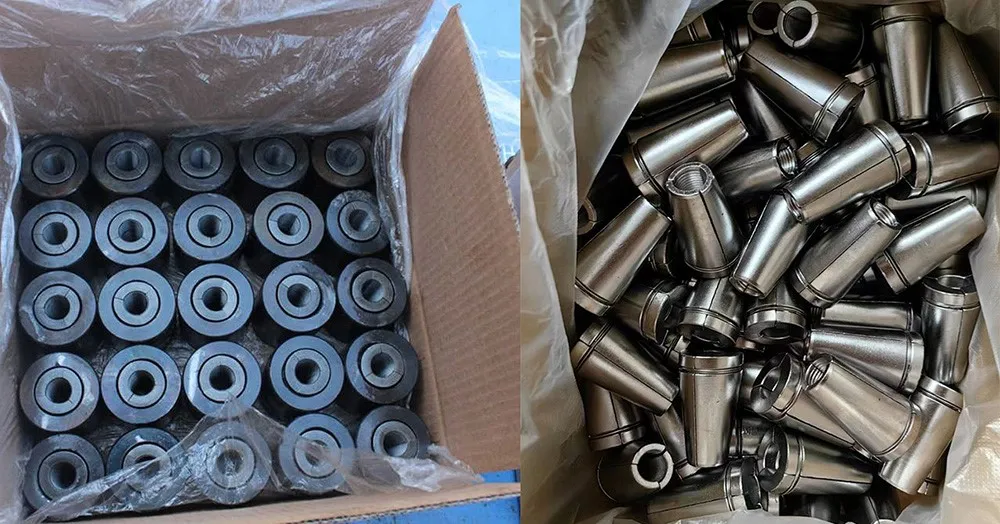

Package of Post-Tension Wedge:
Why Choose Us?
1. Portable to install Save construction cost and time limit
2. Good sealing The product has good sealing is not easy to permeate water is not easy to expose concrete slurry.
3. Standard size Large factory production, precision machining, size standard
